Using Peer Cop with Concept
870 USE 101 00 V.3 357
Specifying References for Input Data, Continued
Procedure Follow the steps in the table below to define the specific input, starting from the
Peer Cop dialog box.
Continued on next page
Step Action
1 Click on the Specific Input... button.

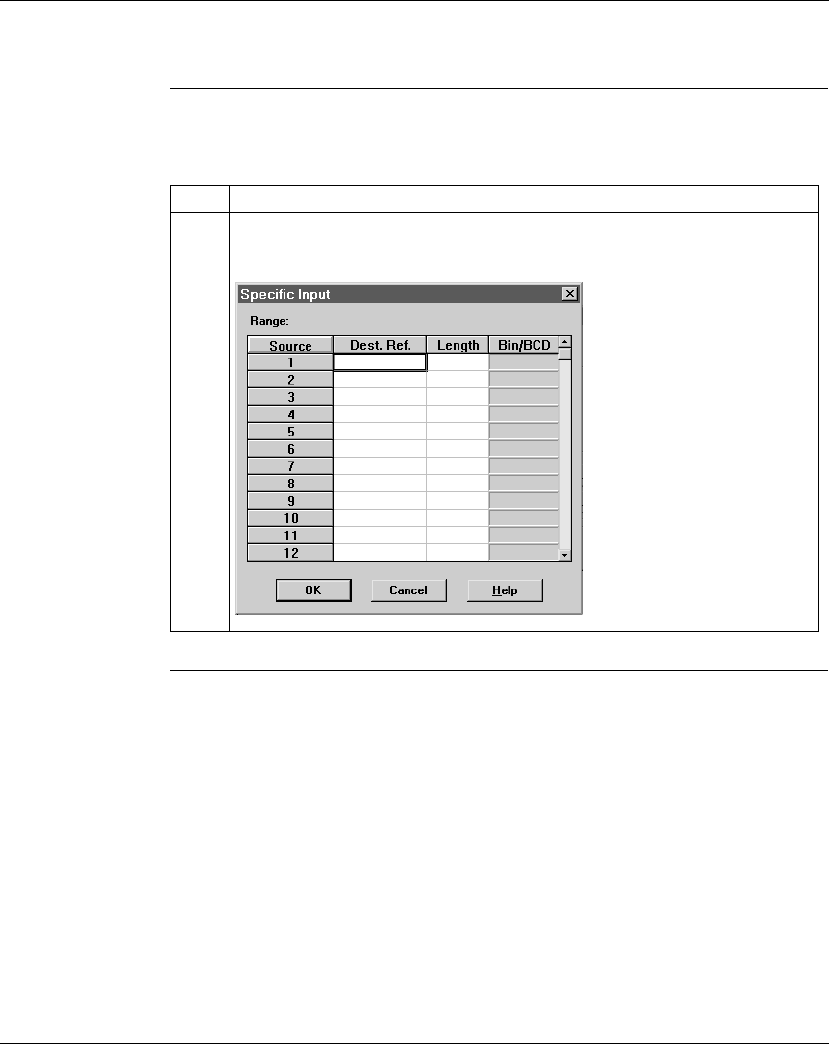

Result: The Specific Input dialog box appears.
