Using Peer Cop with Concept
348
870 USE 101 00 V.3

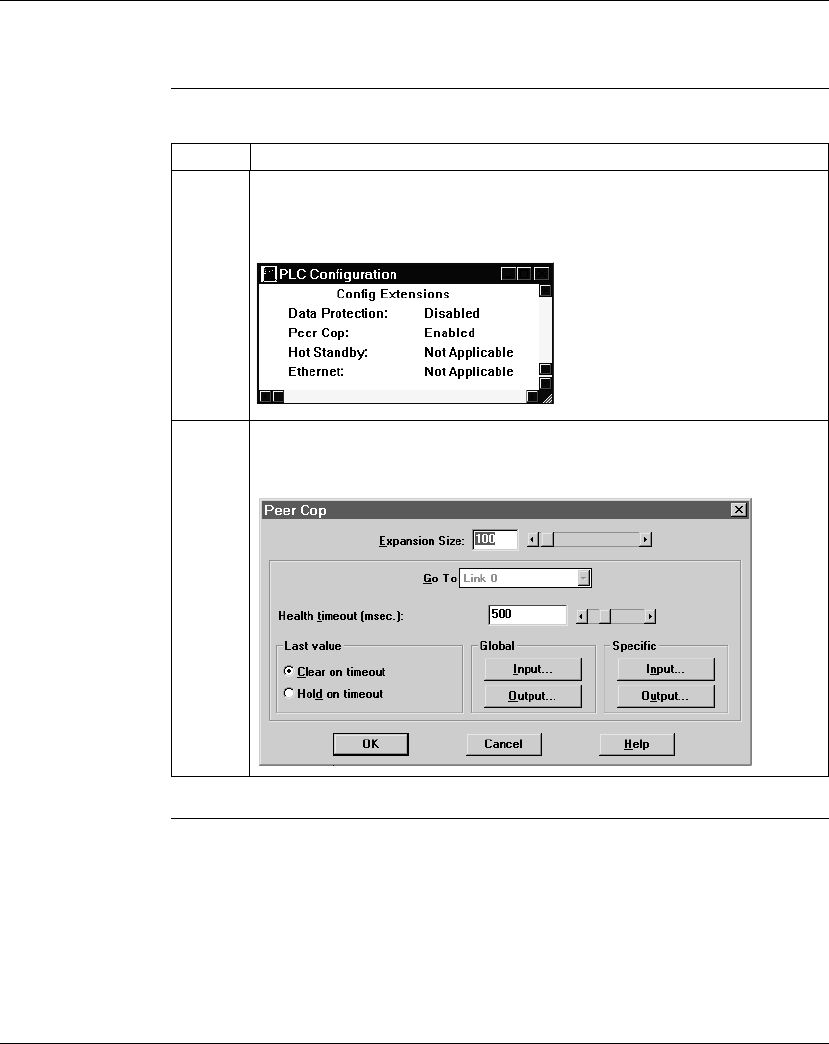

Accessing the Peer Cop Dialog Box, Continued
Accessing the
Screen,
Continued
Step Action
3 Click the check box next to Peer Cop, then click OK.
Result: Peer Cop status changes from Disabled to Enabled in the PLC
Configuration screen.
4 Select Peer Cop from the Configure menu.
Result: The Peer Cop dialog box appears.
