I/O Mapping an I/OBus Network with Concept
870 USE 101 00 V.3 341
Editing the I/OBus I/O Map
Overview The maximum number of modules which can be I/O Mapped on the I/OBus
network depends on your Processor Adapter and its executive:
Procedure To enter I/O bases or Interbus I/O modules using the Remote I/OBus Drop dialog,
perform the steps in the following table.
Continued on next page
Processor Adapter Executive Max. Modules Max. I/O Bits
171 CCS 760 00 984 128 2048
IEC 44 1408
171 CCC 760 10 984
IEC
171 CCC 960 20 984
IEC
Step Action
1 Click on the button under the Module heading.

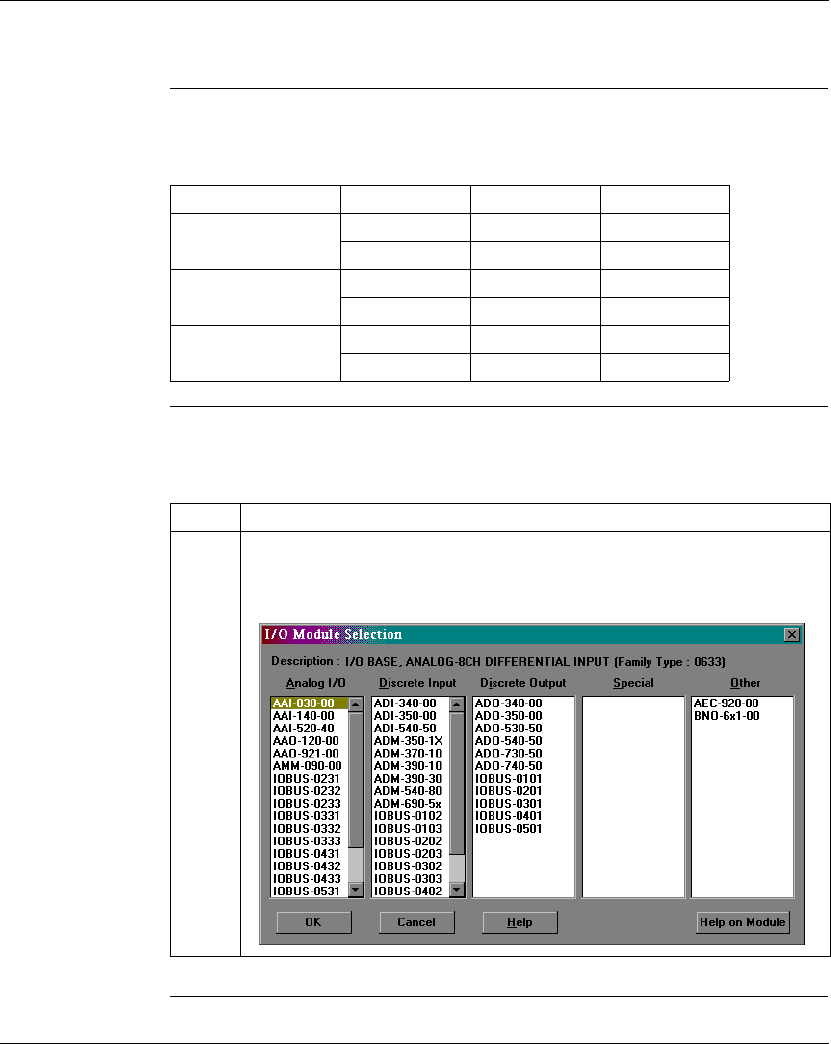

Result: A list of module types is displayed, including I/OBus modules identified by
code number (a list of codes is provided at the end of this section):
