Configuring an M1 CPU with Concept
870 USE 101 00 V.3 317
Stop Bit Should Not Be Changed
Changing Parity
Introduction From the Modbus Port Setting screen, a port can be configured for even, odd, or no
parity checking. The factory-set default is EVEN parity.
Procedure To change the parity parameter, perform the steps in the following table:
Step Action

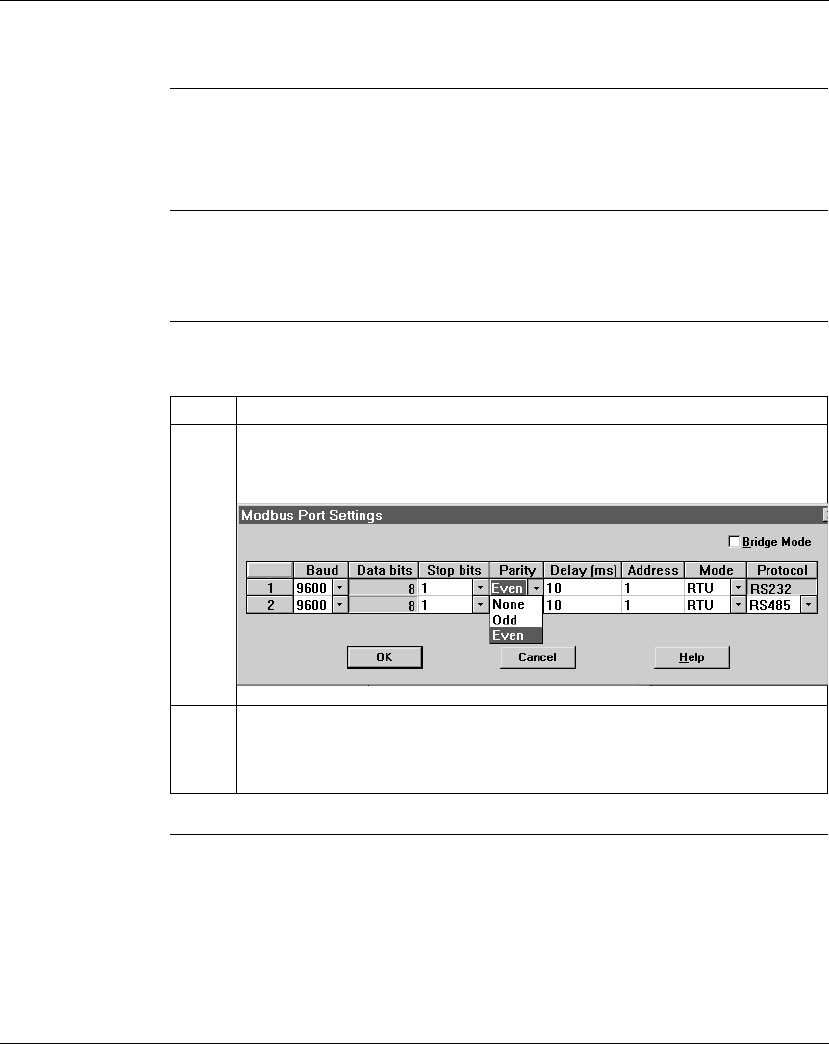

1 Click on the down arrow under the Parity heading.
Result: A menu appears with the three Parity choices.
2 Click on the None, Odd or Even entry.
Result: The Modbus Port Settings dialog box is updated with the Parity type you
have specified.
