Reserving and Monitoring a Battery Coil, Continued
Reserving a
Battery Coil,
Continued
Continued on next page

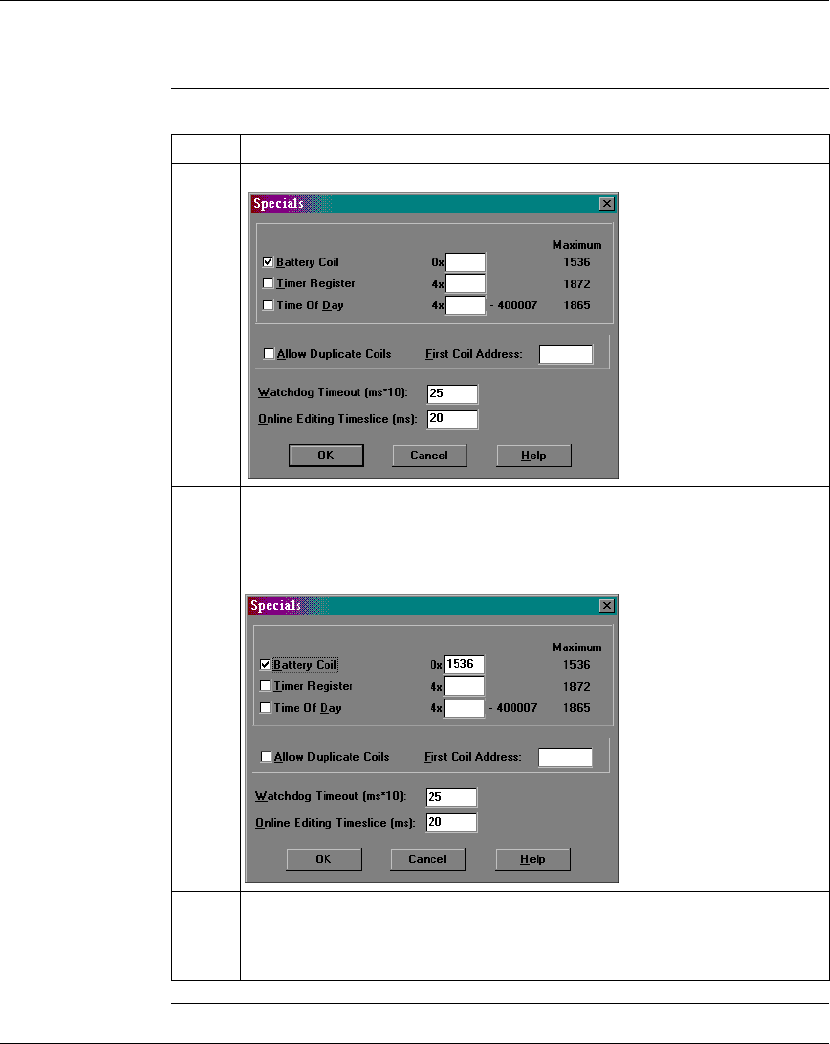

Step Action
2 Click the check box next to Battery Coil.
3 Type a number from the range of available 0
xxxx
references in the box marked
O
x
.
Example: If you have set the range of 0
x
’s at 000001...001536, you might want to
enter the reference value of the last coil–1536.
4 Click the <OK> button.
Result: The dialog box closes and the register you have specified is displayed on
the PLC Configuration screen.
