Configuring an M1 CPU with Concept
288
870 USE 101 00 V.3
Selecting an M1 Processor Adapter, Continued
Procedure Follow the steps below to select an M1 Processor Adapter for a new project.
Continued on next page
Step Action
1 From the File menu, select New Project.
Result: A new project is opened and the file name
[untitled] appears over
the menu bar.
2 From the Project menu, select Configurator.

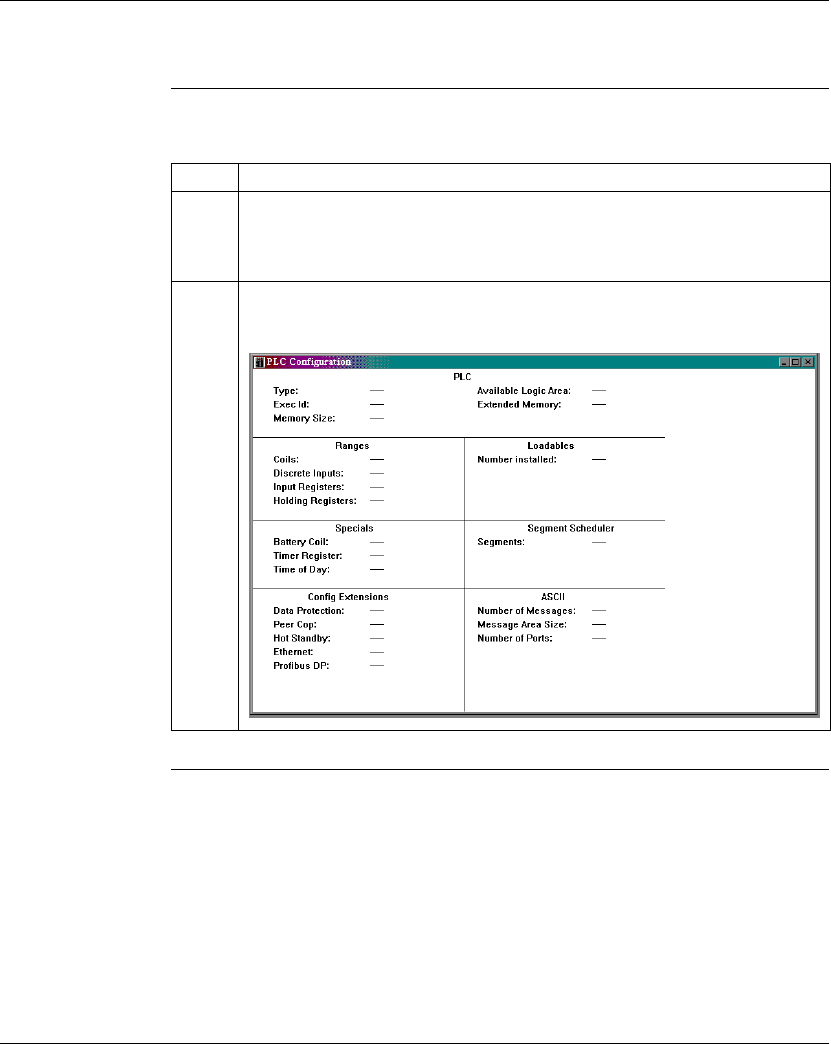

Result: The PLC Configuration screen appears.
