Using Peer Cop with Modsoft
870 USE 101 00 V.3 269
Defining the References for the Next Node, Continued
Defining Specific
Outputs,
Continued
Continued on next page
Step Action
2 Type the value 16 in the LEN column of the SPECIFIC OUTPUT field. Push
<Enter>.
3 With the TYPE column of the SPECIFIC OUTPUT filed set to BIN, push <Enter>
twice.

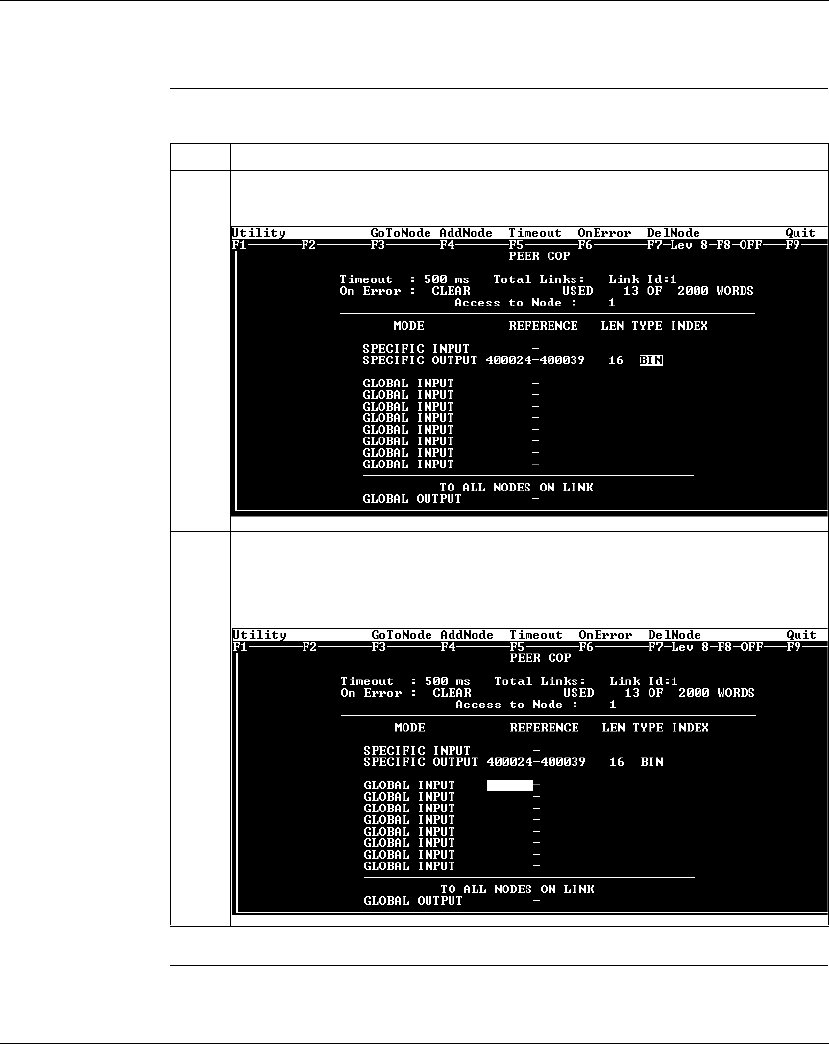

Result: The Peer Cop screen should like this:
