Using Peer Cop with Modsoft
256
870 USE 101 00 V.3
Completing the I/O Device Configuration in Peer Cop, Continued
Completed
Screen: Node 5

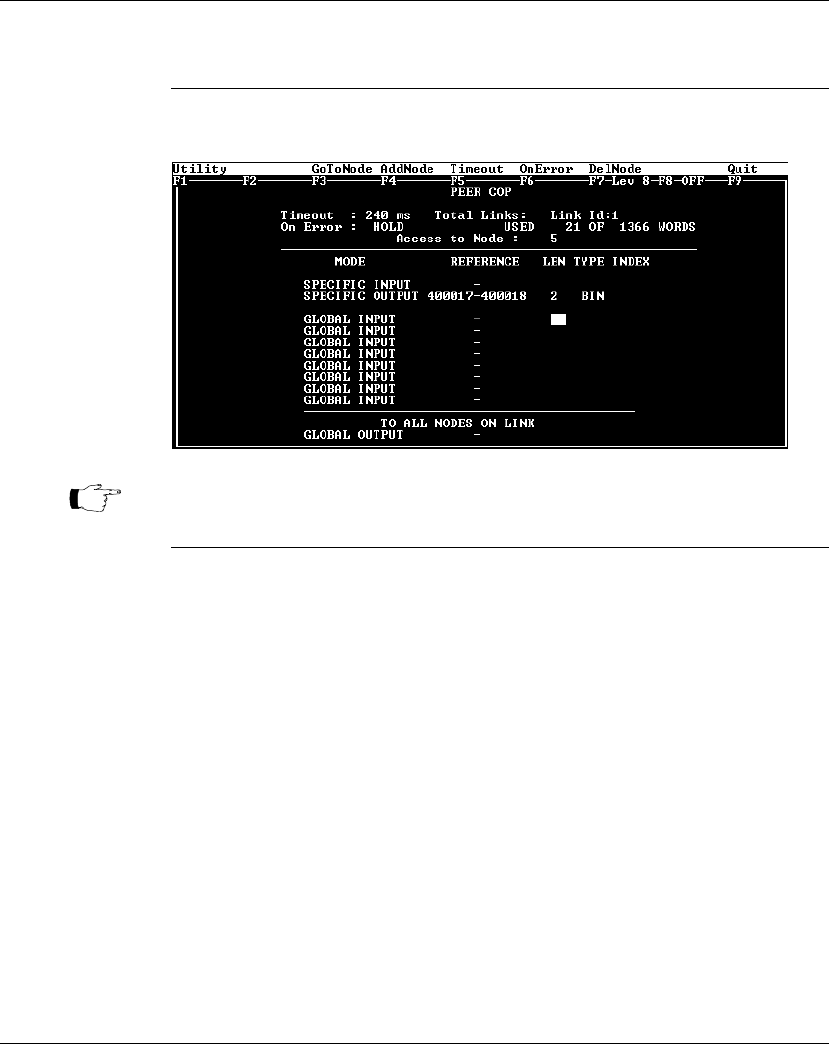

The completed Peer Cop screen for node 5 should look like this:
Note: The lengths (LEN) for the 32-bit I/O devices at addresses 4 and 5 need to
be specified as 2 words (32 bits).
