Configuring an M1 CPU with Modsoft
870 USE 101 00 V.3 219
Accessing and Editing the I/O Map, Continued
Editing the Local
I/O Map
To edit the Local I/O Map, perform the steps in the following table.
Continued on next page
Step Action

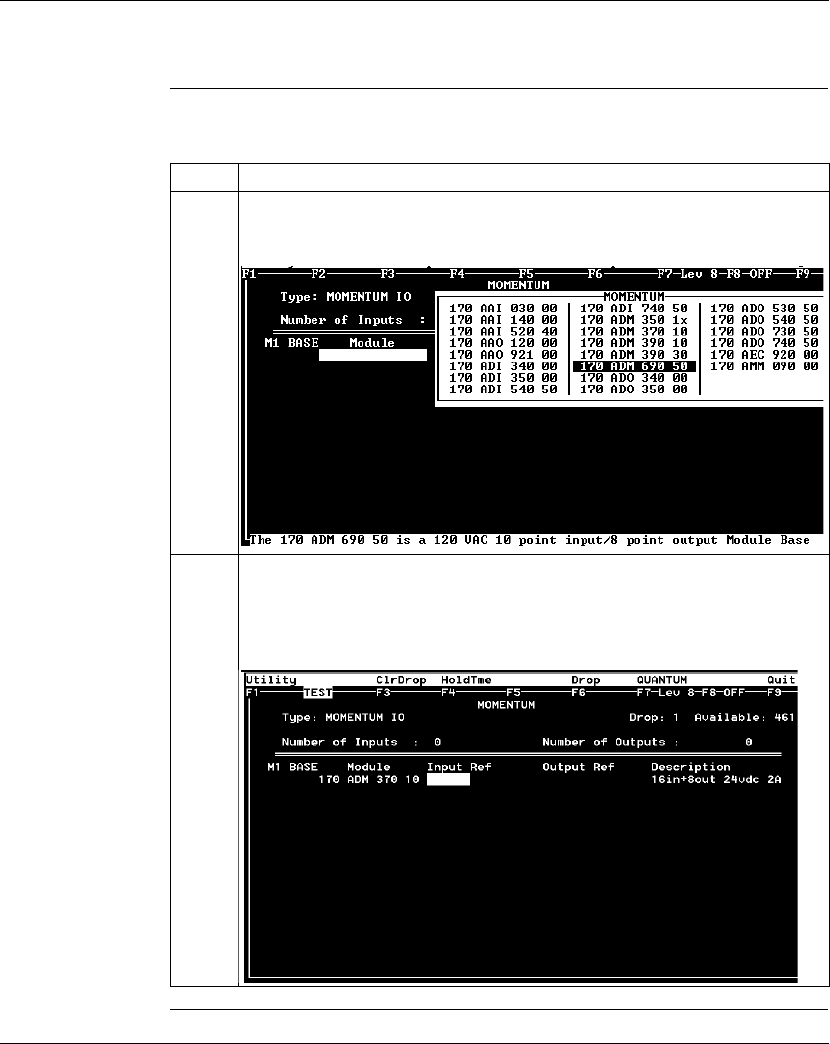

1 To select the local base unit for drop 1, push <Shift><?> .
Result: A list of all available Momentum base units appears in a window over the
I/O Map screen, as shown below. The list includes all Momentum I/O bases.
2 Move the cursor onto the model number of your local base unit
(e.g., the 170 ADM 370 10 24 VDC 16-point in/ 8-point out base in the sample
screen). Push <Enter>.
Result: The module type and description of the base you select appears in the
(Drop 1) I/O Map screen:
