Configuring an M1 CPU with Modsoft
184
870 USE 101 00 V.3
Selecting an M1 Processor Adapter, Continued
Procedure,
Continued
Continued on next page
Step Action
2
Move the cursor onto
PLC Type
in the pulldown list and push <Enter>.

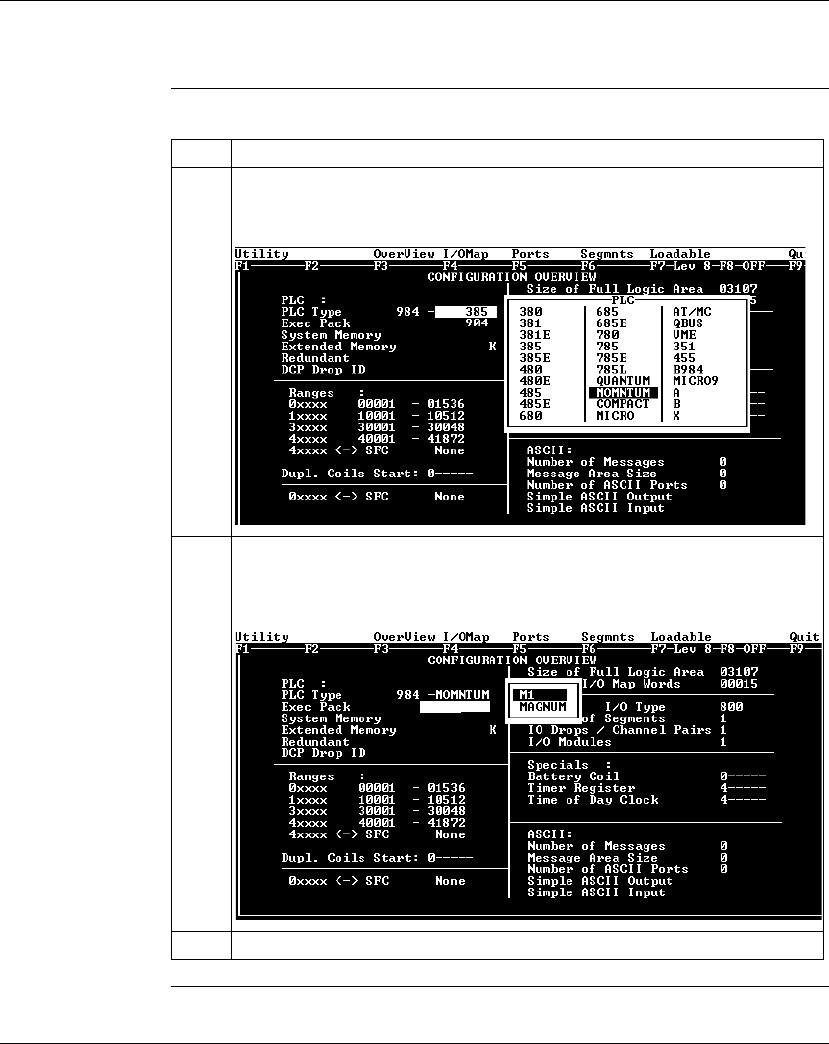

Result: The following list of PLC types appears on the screen:
3 Move the cursor onto MOMNTUM and push <Enter>.
Result: You will be prompted to select between the M1 Processor type and the
Magnum.
4 Place the cursor on M1 and push <Enter>.
