Using the I/OBus Port
870 USE 101 00 V.3 153
Cable Accessories
Overview Modicon provides several cabling solutions for I/OBus:
l Low profile cables in two lengths
l A 1m cable with high profile rear shell
l A connector kit for building custom-length Interbus cables
This section describes those solutions.
Low Profile
Cables

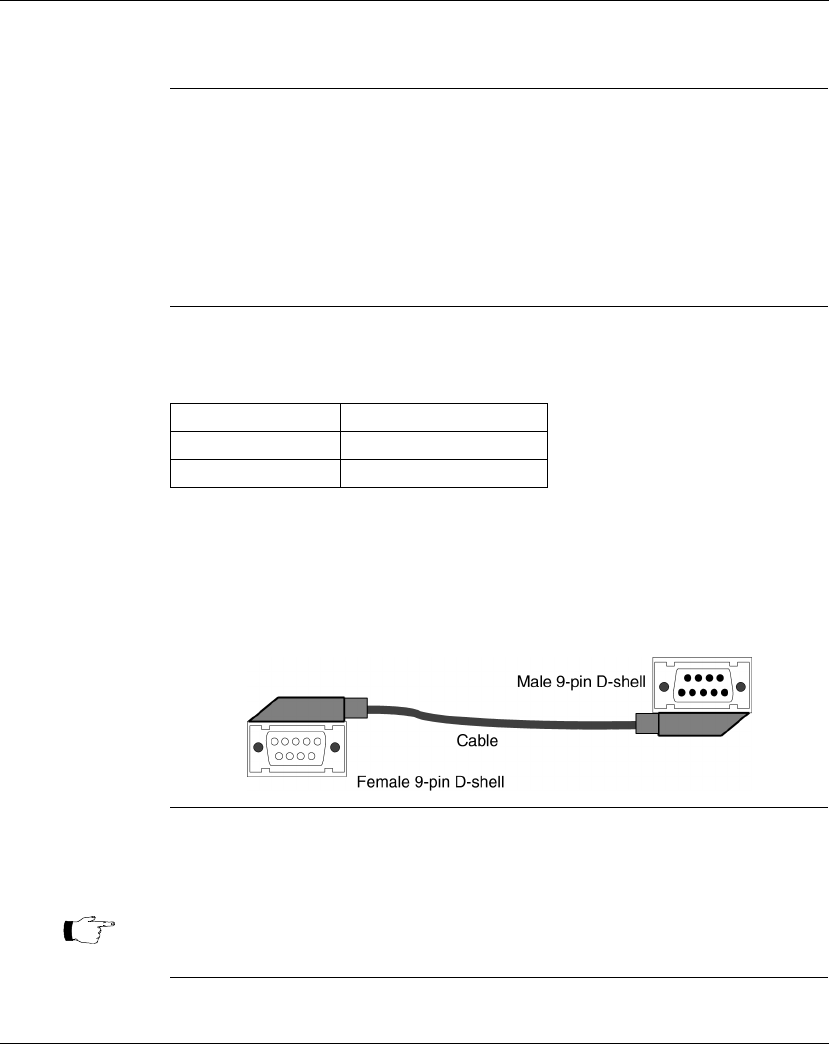

For side-by-side mounting of the CPU with Interbus I/O modules on a DIN rail or
wall, Modicon provides two specially molded low profile cables.
These cables have a male 9-in D-shell connector on one end and a female 9-pin D-
shell on the other. The male connector plugs into the female I/OBus port on the
Processor Adapter, and the female connector plugs into the male connector on the
left side of a 170 INT 110 00 Interbus Communications Adapter on an I/O base.
Additional cables can then be used to connect a series of I/O modules via their
Interbus communication ports.
1 m Cable A 1m (39 in) Interbus cable (170 MCI 100 00) is also available to allow you to
connect modules on separate DIN rails.
Continued on next page
Part Number Length
170 MCI 007 00 11.4 cm (4.5 in)
170 MCI 100 01 100 cm (39 in)
Note: The connectors on the 170 MCI 100 00 cable are high profile, the same
type used in the connector kit.
