Using the Modbus Ports
130
870 USE 101 00 V.3
Pinouts for Modbus RS485 Networks, Continued
Terminating
Resistor Plugs

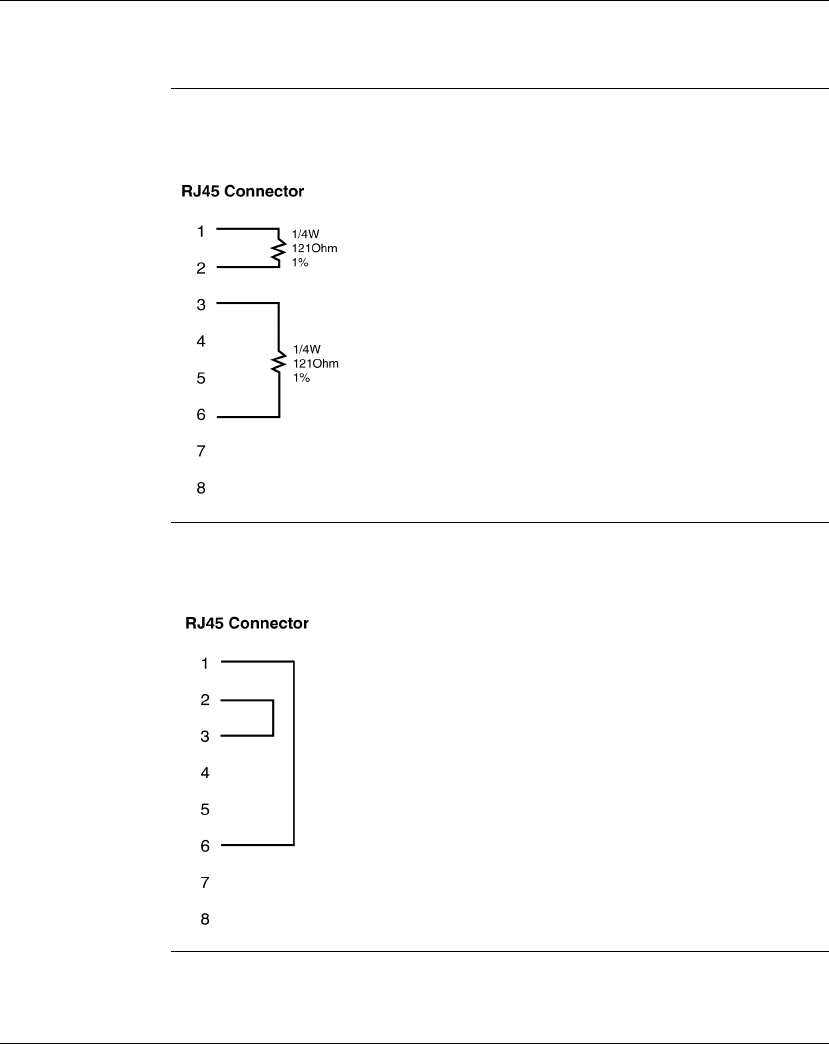

The illustration below shows the pinout for the Modbus Plus or Modbus RS485
Terminating RJ45 Resistor Plugs:
Terminating
Shunt Plugs
The illustration below shows the pinout for the Modbus RS485 Terminating RJ45
Shunt Plugs:
