Pinouts for Modbus RS485 Networks, Continued
9-Pin D-Shell
Pinout

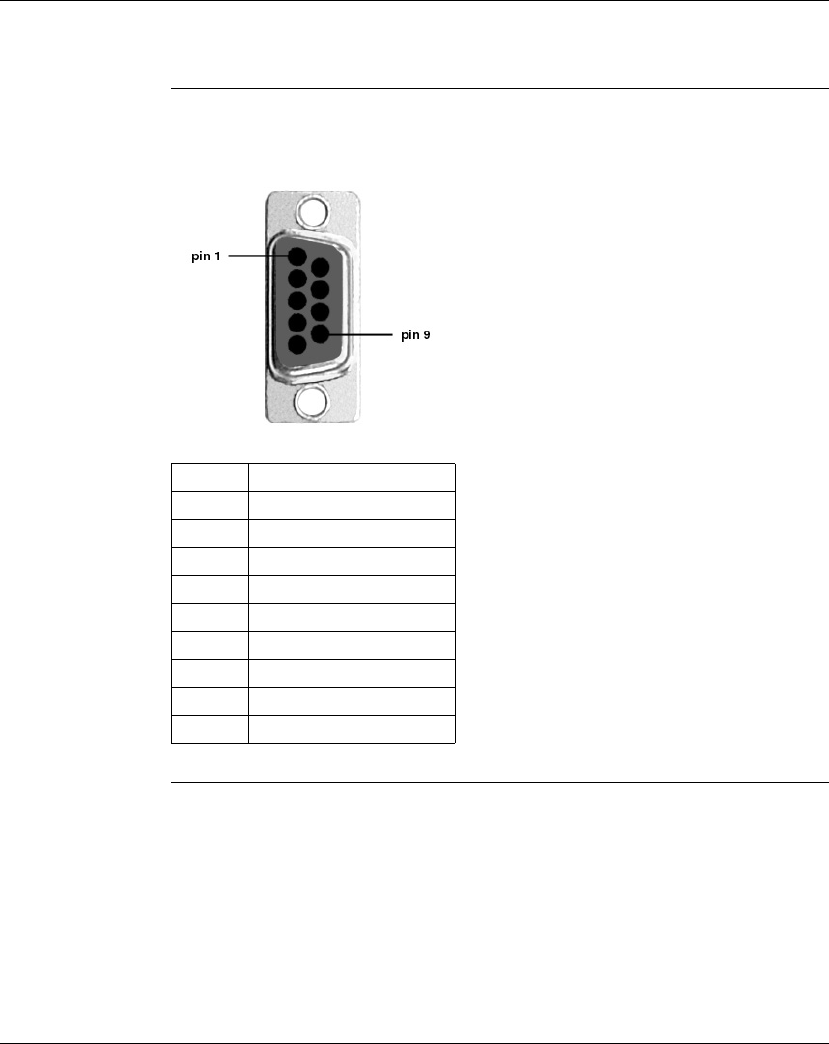

The illustration below shows the pinouts for wiring a male 9-pin D-shell connector
for RS485. The metal shell is connected to chassis ground.
Continued on next page
Pin Function
1 TXD +
2RXD +
3 Signal common
4 Reserved
5 Reserved
6 TXD -
7RXD -
8 Reserved
9 Reserved
