Using the Modbus Ports
120
870 USE 101 00 V.3

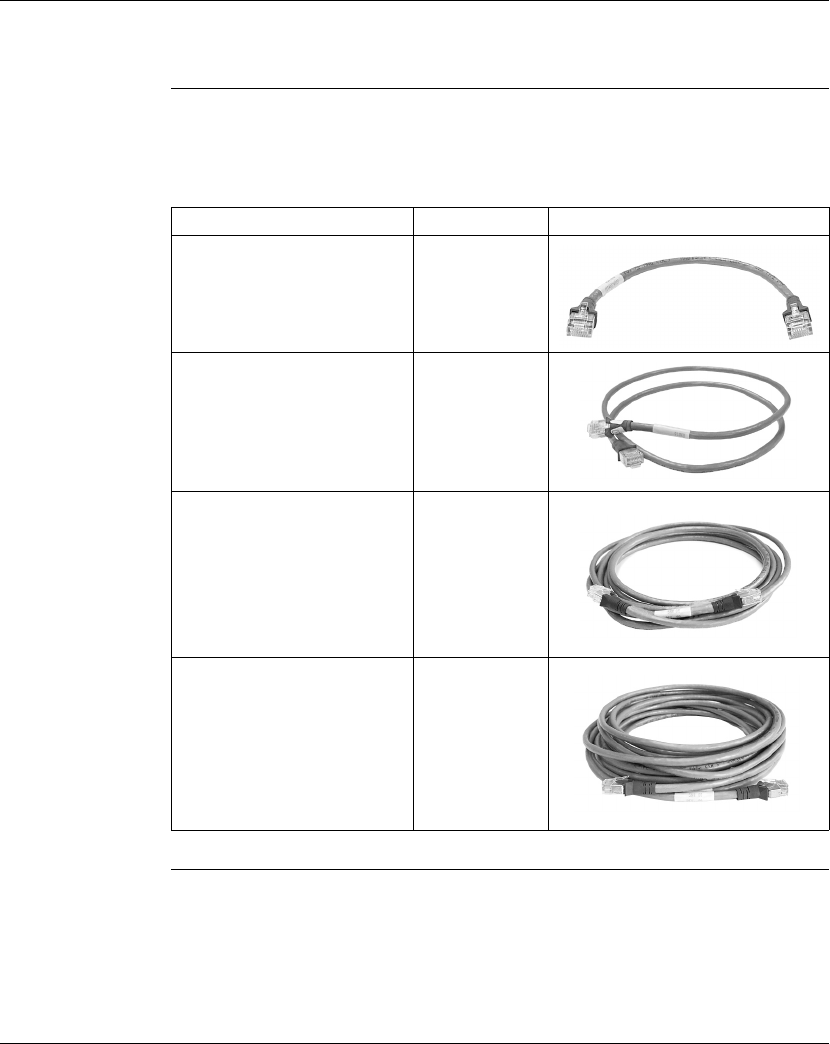

Cable for Modbus RS485 Networks, Continued
Interconnect
Cables
Cable for connecting two Modbus RS485 devices, such as TSX Momentum
modules, is available from Schneider Automation in four lengths. These cables
have a
black boot
.
Continued on next page
Description Part Number Illustration
Modbus Plus or Modbus RS485
Short Interconnect Cable (10”)
Can be used for Ethernet
170 MCI 020 10
Modbus Plus or Modbus RS485
3 ft. Interconnect Cable
Can be used for Ethernet
170 MCI 020 36
Modbus Plus or Modbus RS485
10 ft. Interconnect Cable
Cannot be used for Ethernet
170 MCI 021 80
Modbus Plus or Modbus RS485
30 ft. Interconnect Cable
Cannot be used for Ethernet
170 MCI 020 80
