12
cable is used (minimum cross-section: 1.5 mm²), observe the manufacturer data for the
cable (operating instructions) and the locally applicable regulations.
• Route the power cord in such a way that it does not present a tripping hazard. Do not pull
the cord over corners or sharp edges, pinch it between objects or allow it to hang loosely
in the open. Do not position the cord over hot objects, and protect the cord from exposure
to oil and aggressive cleaning products.
• Never lift or pull the device by the power cord. Never pull the plug out of the socket by its
cord. Never touch the power cord or plug with wet hands. Never insert a wet plug into a
power socket.
Power requirements
Installation
Unpacking the machine
► Unpack the machine.
► Check the remaining package contents for accessories.
► Remove the accessories supplied in the grounds container and water tank.
► Keep the original packaging in case the equipment needs to be sent back.

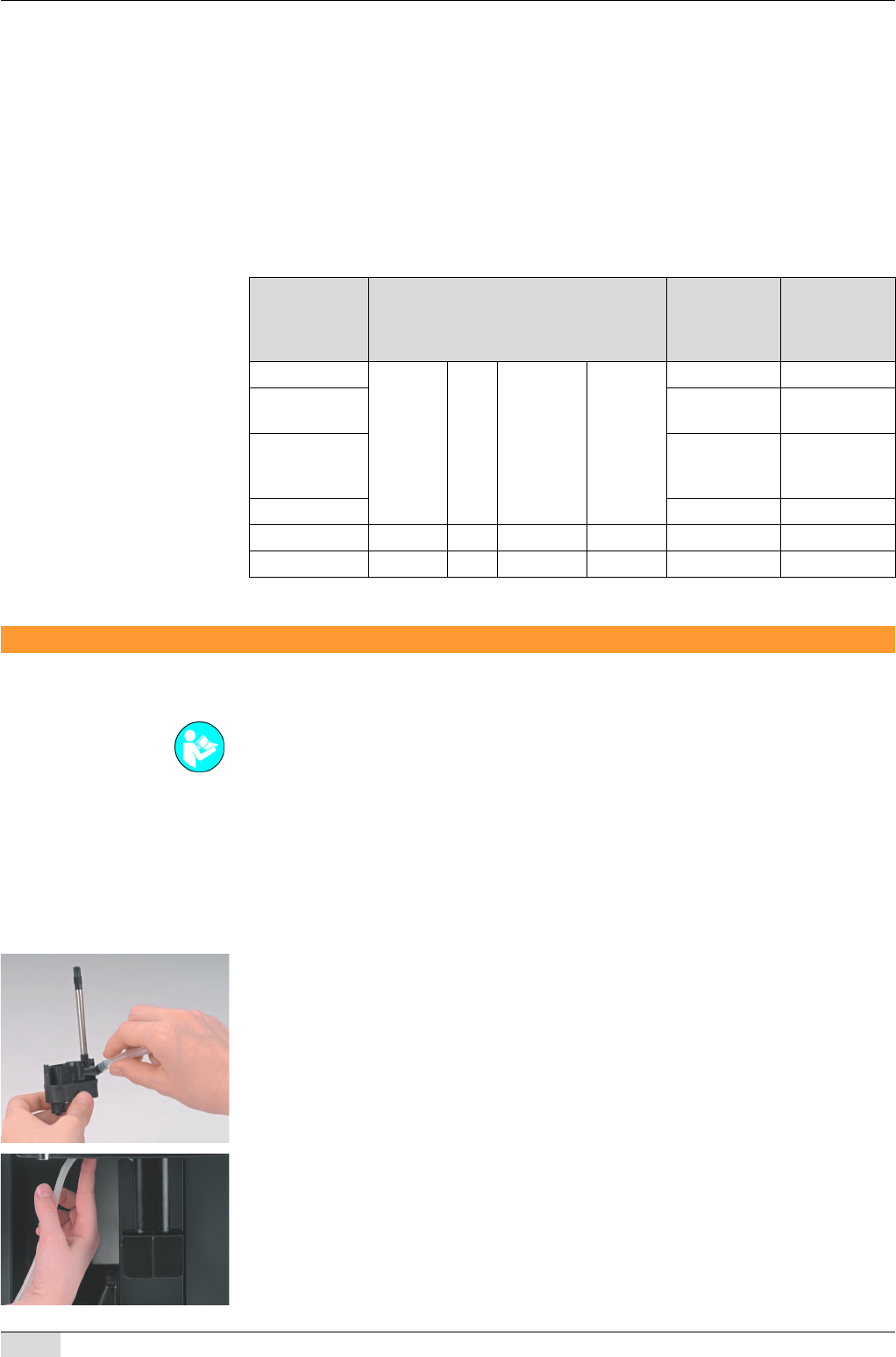

Connecting the milk supply
► Mounting the milk hose on the beverage outlet (see figure).
► Select a suitable milk nozzle (brown = for cooled milk; transparent = for uncooled milk) and
insert at the lower end of the milk hose.
► Insert the beverage outlet into the holder.
► Remove the grounds container out of the coffee machine.
► Move the beverage outlet to the lowest position.
► Clamp the milk hose in the provided guide.
Model Power rating
Fuse (instal-
lation site)
Connecting
cable con-
ductor cross-
section
Standard
220 –
240 V
CA 50/60 Hz
2000 –
2200 W
10 – 16 A 1.5 mm²
England,
Ireland
13 A
1.5 mm²
Australia,
New Zealand,
China
15 A 1 mm²
Denmark 10 A 1 mm²
USA 120 V CA 50/60 Hz 1700 W 15 A AWG14
Japan 120 V 2 CA 50/60 Hz 2000 W 15 A 2.5 mm²
Read the “Setting up the coffee machine” and “Power supply” chapters carefully before install-
ing.
