5. Sensor Information
Page 20
5. Sensor Information
Manufacturer: DALSA Corp.
Type: IL-P1-1024
Data source: DALSA Line Scan Sensors, Document 03-036-00134-05

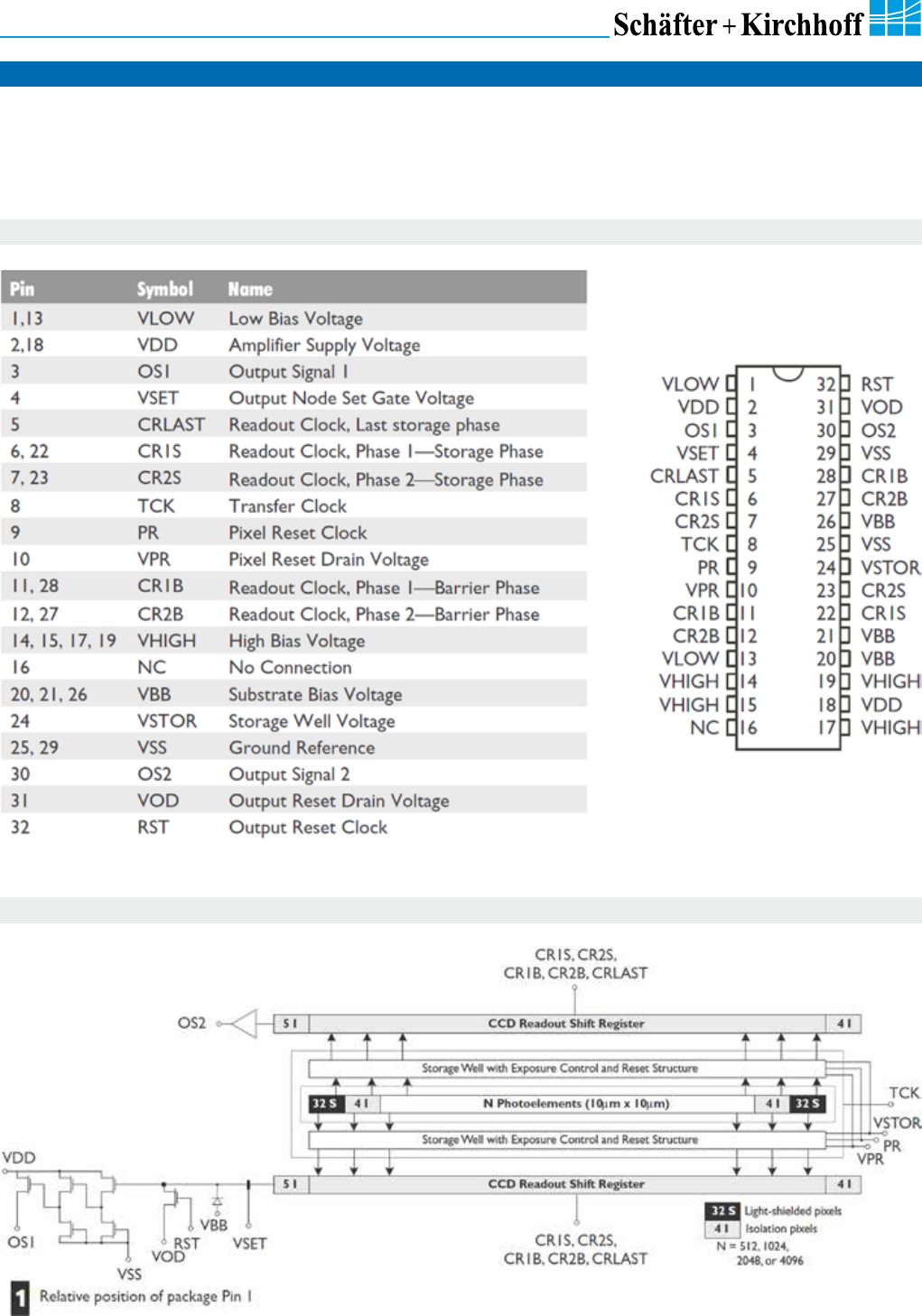

Pin Functional Description
Block Diagram
