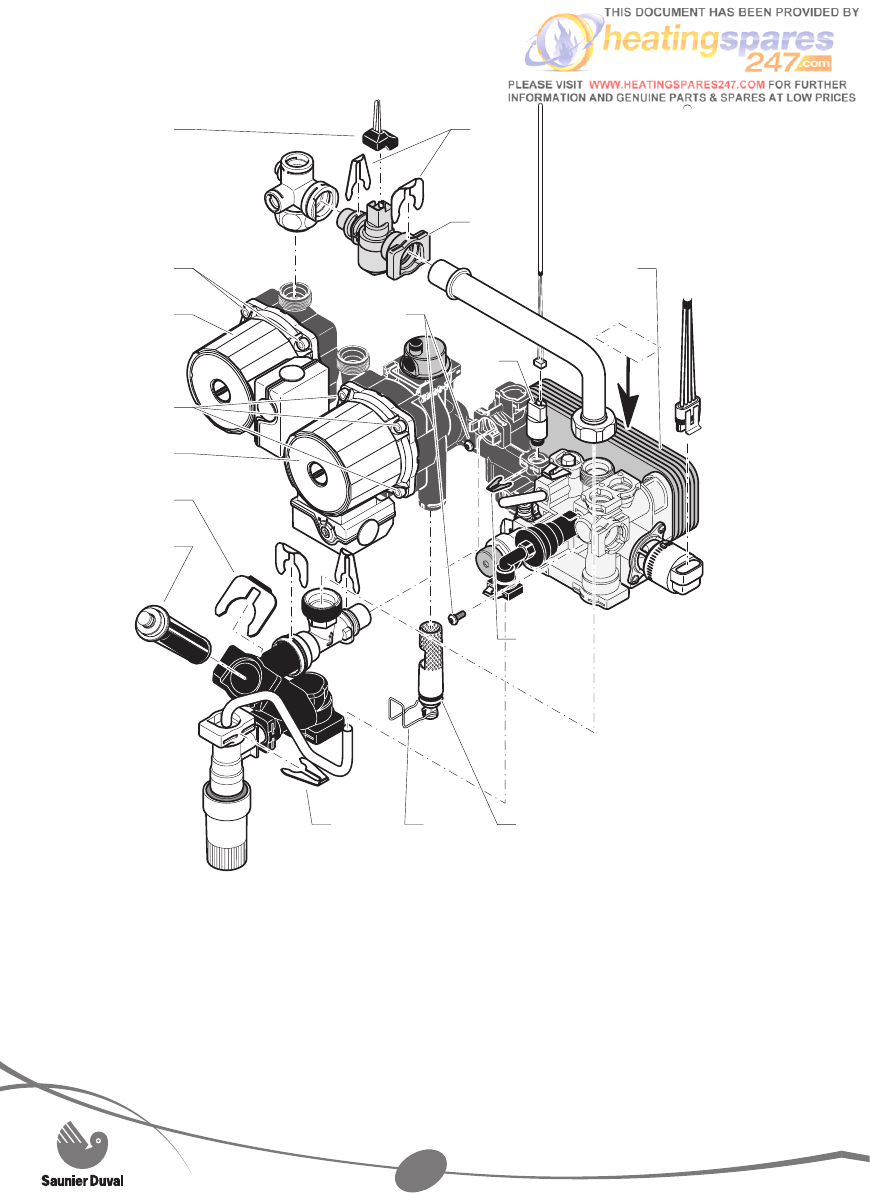

14.2 Hydraulic block
TOP
11
12
1
2
16
15
14
3
4
5
6
7
8
9
10
13
Legend
1 DHW pump retaining screws
2 DHW pump motor
3 Heating pump retaining screws
4 Heating pump motor
5 Cold water filter retaining clip
6 Cold water filter
7 Filling tap retaining clip
8 “Foaming” filter retaining clip
9 “Foaming” filter
10 Low water pressure sensor retaining
clip
11 Low water pressure sensor
12 Sanitary exchanger retaining screws
13 Sanitary exchanger
14 Flow sensor
15 Flow sensor retaining clips
16 Connector
