Installation manual

26
H*: This dimension comply with the
building regulations, but it may need to
be increased to avoid wall staining and
nusance from pluming depending on site
conditions.

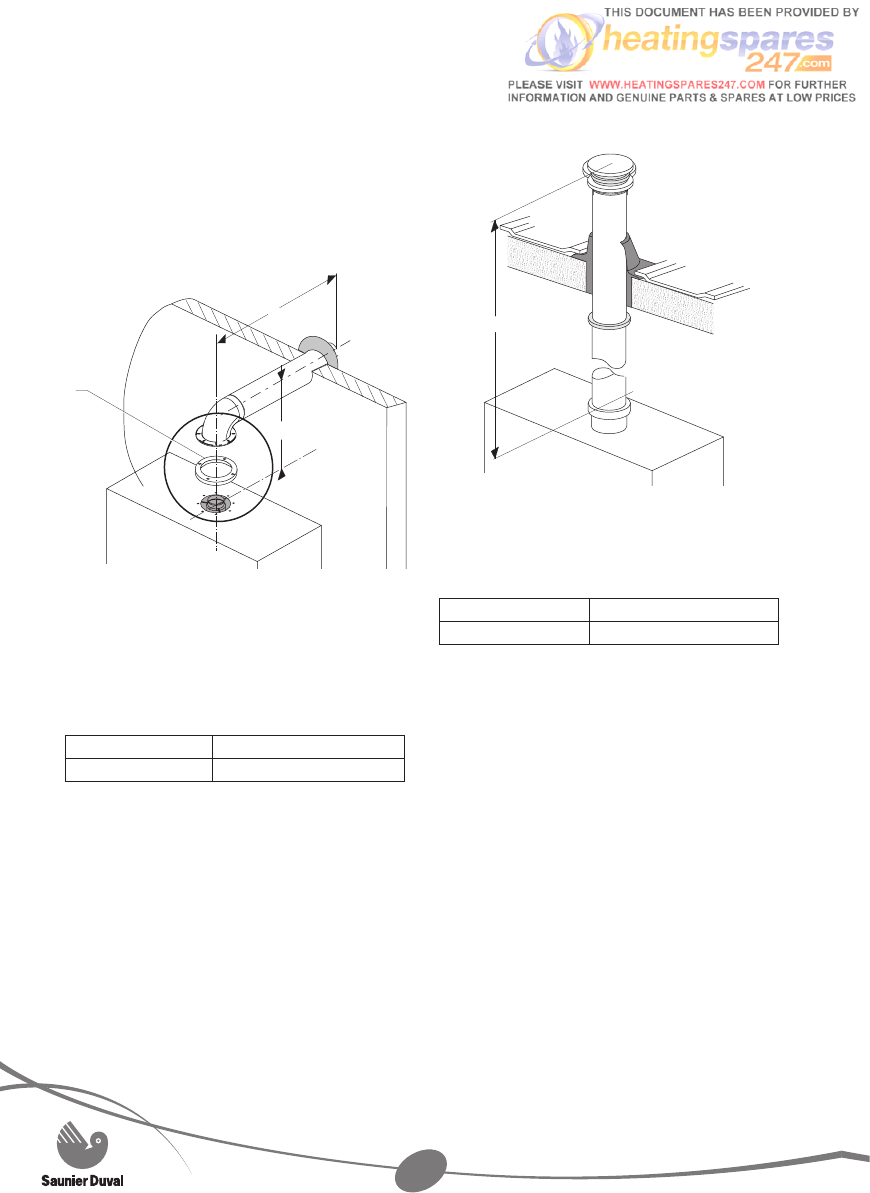

5.7.1 Horizontal concentric flue
Ø 60/100
(C13 type installation)
1
L
72
Legend
1 Gasket
Maximum flue index: 150 Pa
This value is reached with the length of
the maximum duct (L) + 1 90° elbow
.
Flue model Max. length
Ø 60/100 5 m
A Plume mangement kit can be installed at
the extremity of the duct.
Refer to the instructions sheet of the
accessory and take it into account the
following length:
- L1 ≤ 6 m whatever L
- L2 = L
= 5 m
Every time a 90° elbow is used (or 2 off
45°), the length (L) should be reduced by
1 m.
•
5.7.2 Vertical concentric flue
Ø 60/100
(C33 type installation)
L
Maximum flue index: 150 Pa
This value is reached with the length of
the maximum duct (L) + 1 90° elbow.
Flue model Max. length
Ø 60/100 5.5 m
Every time an extra 90° elbow is used (or
2 off 45°), the length (L) should be redu-
ced at by 1 m.
5.7.3 Twin flue 2 x Ø 80
(C53 type installation)
W
arning!
Any duct that goes through a wall
and whose temperature is over 60°C
from the room temperature will be
thermally insulated at this passage.
The insulation will be composed of an
appropriate insulating material whose
thickness is ≥ 10 mm and thermal
conductibility λ ≤ 0.04 W/m.K.
-
