2008 Outlook Automobile Owner's Manual

Climate Controls

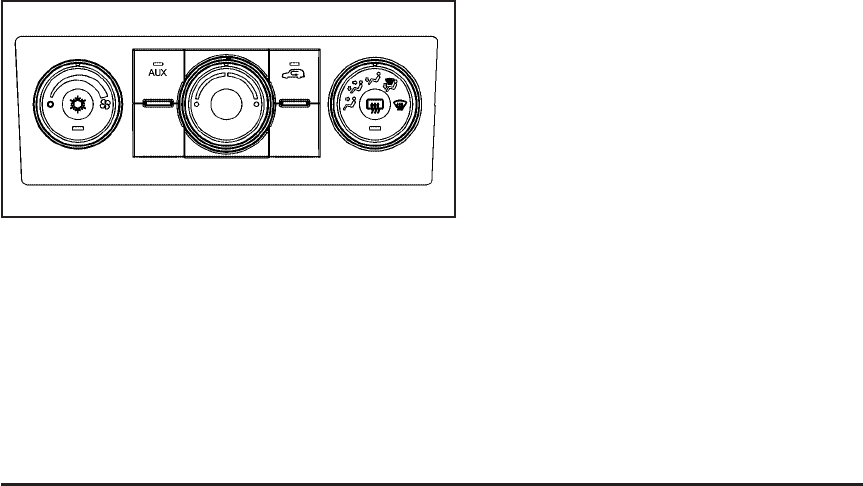

Climate Control System
With this system you can control the heating, cooling,
defrost, defog, and ventilation of the vehicle.
Manual Operation
9
(Fan): Turn the left knob clockwise or
counterclockwise to increase or decrease the fan speed.
Turn the knob all the way counterclockwise to turn the
front system off.
Temperature Control: Turn the center knob clockwise
or counterclockwise to increase or decrease the
temperature of the air flowing from the system.
Airflow Mode Control: Turn the right knob clockwise
or counterclockwise to direct the airflow inside of
the vehicle.
To change the current mode, select one of the following:
H (Vent): This mode directs air to the instrument
panel outlets.
) (Bi-Level): This mode directs about half of the
air to the instrument panel outlets and half to the floor
outlets. A little air is directed towards the windshield
and side window outlets. Cooler air is directed to
the upper outlets and warmer air to the floor outlets.
6 (Floor): This mode directs most of the air to the floor
outlets, with some of the air directed to the windshield,
side window outlets, and second row floor outlets.
In this mode, the system automatically selects
outside air. Recirculation cannot be selected when in
Floor Mode.
The right knob can also be used to select defog or
defrost mode. For more information, see “Defogging
and Defrosting” later in this section.
By positioning the right knob between two modes,
a combination of those two modes is selected.
3-23
