Chapter 4 Connecting to the ETC2002 Using PAS Software
ETC2002 Network Communicator 29
Communicating through a Dial-up Connection
Configuring a Dial-up Connection

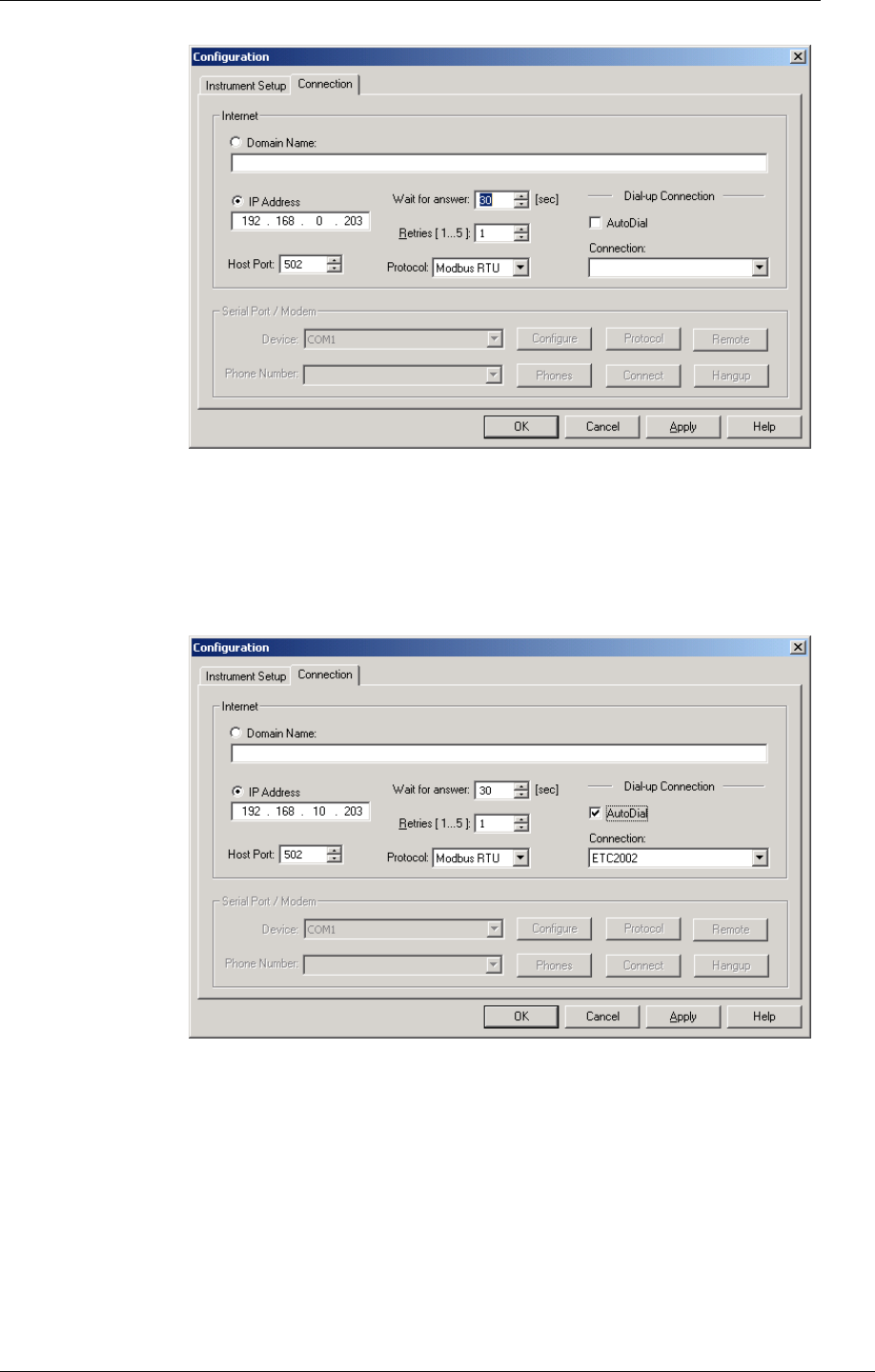

To communicate through a Dial-up modem:
1. On the Instrument Setup tab, select Internet Site.
2. Click on the Connection tab.
3. Click on the “IP address” and type in the IP address you
defined in Dial-Up Networking Setup in your ETC2002.
The default IP address preset at the factory is
192.168.10.203.
4. In the “Protocol” box, select the communications protocol
for the ETC2002 TCP port. The host port is set
automatically as you select the protocol. Select “Modbus
RTU” for Modbus/TCP, “DNP3” for DNP3/TCP, or
“SATEC ASCII” for SATEC ASCII/TCP.
5. In the “Wait for answer” box, adjust the time that PAS
should wait for a connection before announcing an error
and the number of re-tries that PAS should use to receive
a response from the device if communications fail.
