Using PAS
Select General Setup from the Meter Setup menu, and then click on
the Digital Inputs tab.

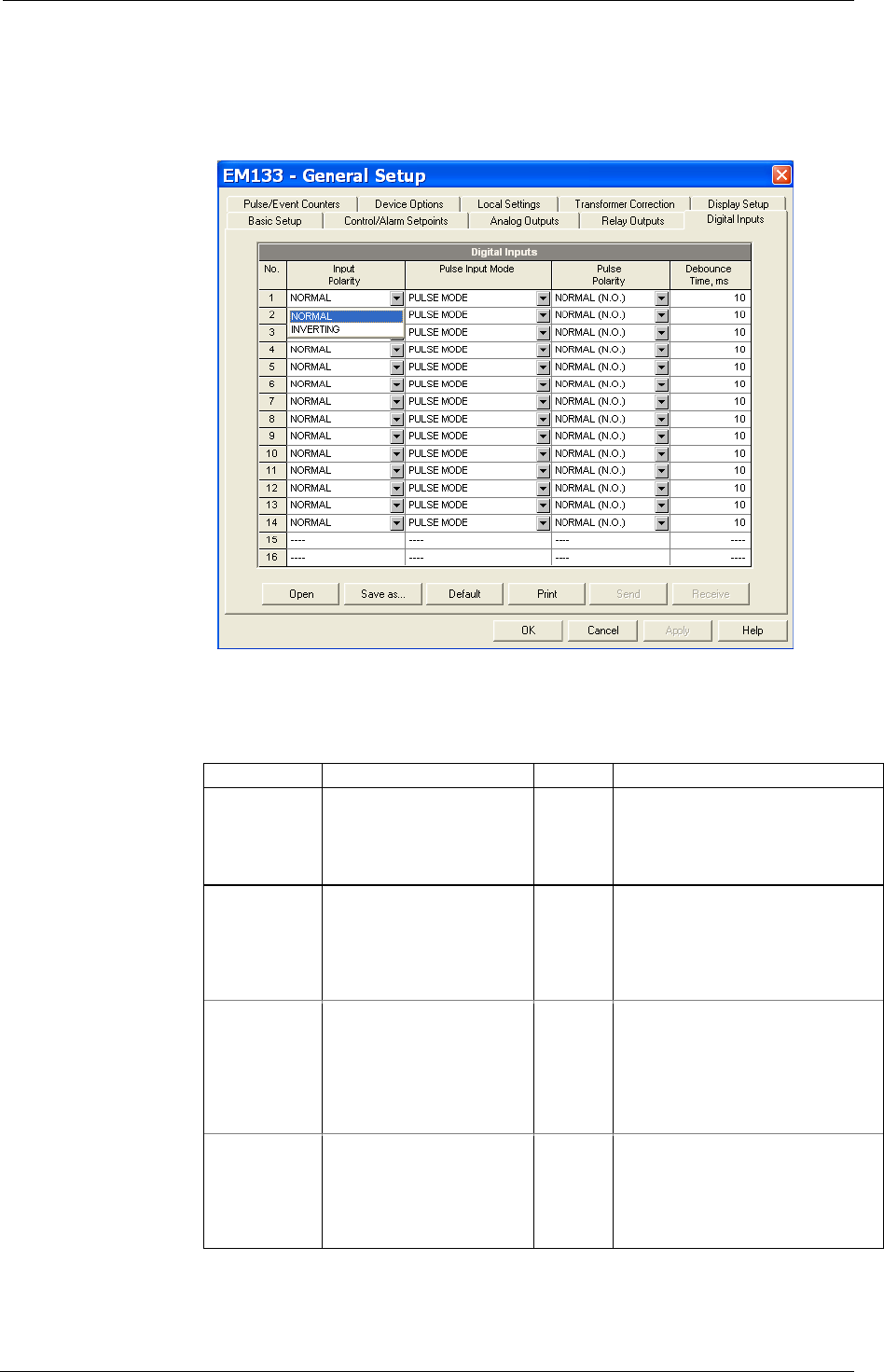

Figure 5-8: General Setup Dialog Box Digital Inputs Dialog Box
The available options are shown in Table 11.
Parameter
Options
Default
Description
Input Polarity
NORMAL
INVERTING
NORMAL
For the normal polarity, the open
to closed transition is considered
closed. For the inverting polarity,
the closed to open transition is
considered a closed
Pulse Input
Mode
PULSE MODE
KYZ MODE
PULSE
MODE
In pulse mode, either leading, or
trailing edge of the input pulse is
recognized as an event. In KYZ
mode, both leading and trailing
edges of the input pulse are
recognized as separate events.
Pulse Polarity
NORMAL (N.O.),
INVERTING (N.C.)
NORMAL
For the normal polarity, the open
to closed transition is considered
a pulse. For the inverting polarity,
the closed to open transition is
considered a pulse.
It has no meaning in KYZ mode
where both transitions are used.
Debounce
Time
1-100 ms
10 ms
The amount of time while the
state of the digital input should
not change to be recognized as a
new state. Too low debounce time
could produce multiple events on
the input change.
