User Manual

Chapter 8 Retrieving A N D S T O R I N G F I L E S
EM13x Series SMART MULTIFUNCTION METER 115
8.2 Using the Upload Scheduler
To setup the Upload Scheduler:
Select Upload Scheduler from the Logs menu.

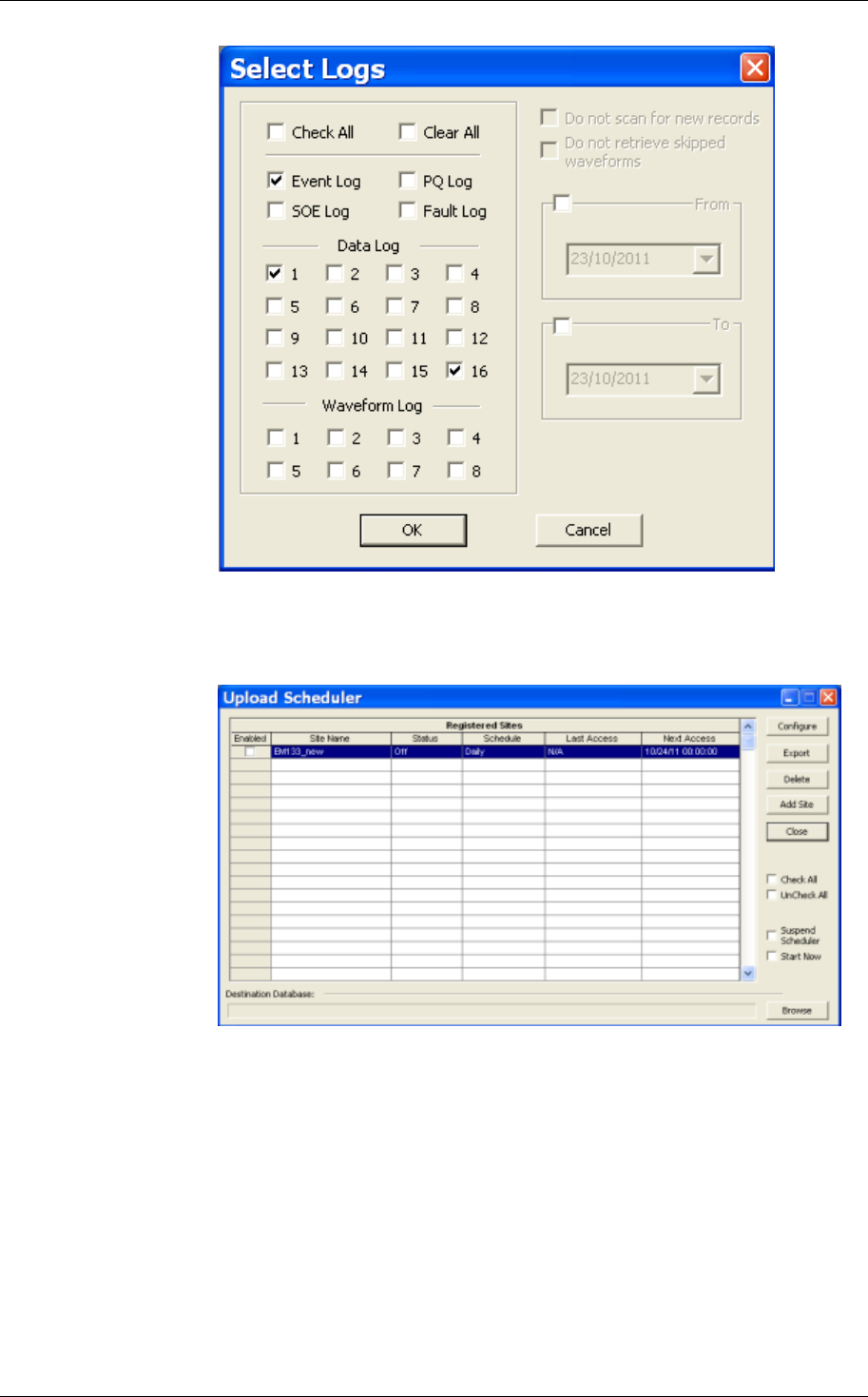

Figure 8-1: Upload Scheduler Setup Dialog Box
Click Add Site, point to the site database for which you want to
organize the schedule, and then click OK.
Click Browse and select a database for storing retrieved data, or type
the name for a new database, select a directory where you want to
save it, and then click OK.
Click Configure or double click on the site row.
