Using PAS
Ensure that the On-line button on the PAS toolbar is checked, select
Device Control from the Monitor menu, and then click on the Device
Diagnostics tab.
See Device Diagnostic Codes in Appendix G for the list of diagnostic
codes and their meaning.

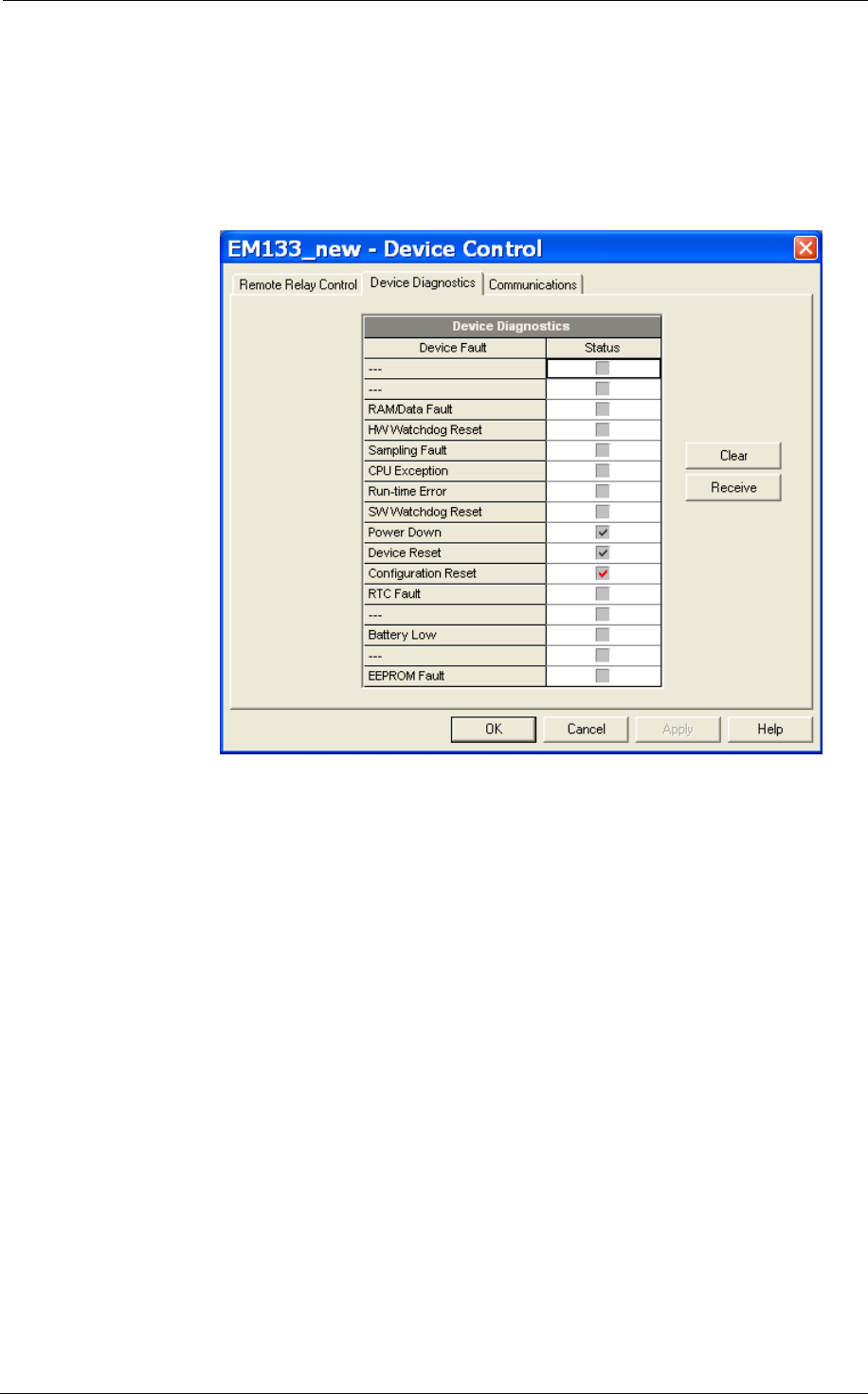

Figure 6-4: Device Control Dialog Box – Device Diagnostics Tab
To clear the device diagnostics events, click on Clear.
6.4 Viewing Communication Status and Statistics
Ensure that the On-line button on the PAS toolbar is checked, select
Device Control from the Monitor menu, and then click on the
Communications tab.
