Operating instructions

Accessories (Options)

Order No.:

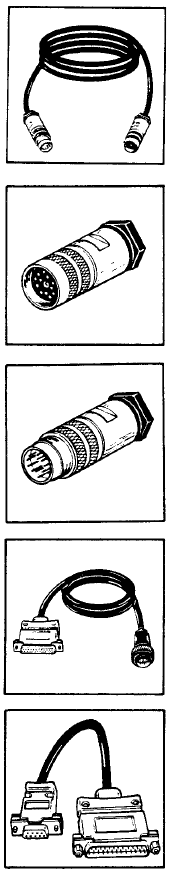

Data interface port with 3-m cable (IP67, RS-485)

and 1 2-pin round connector (electrically

isolated) YD0511S

Data interface port with 3-m cable (IP67, RS-232C/

RS 423) and 1 2-pin round connector (electrically

isolated) YD0521S

Data interface port with 6-m cable (IP67, RS-485)

and 1 2-pin round connector (electrically isolated) YD0531S

Extension cable to connect an

isi

terminal

to a weighing platform; 1 2-pin round connector

to ] 2-contact round connector (IP65, 6 m) YCC 01 -ISM6

Round female connector, IP65, 69 QC0011

type C091 D, 1 2-contact, Amphenol,

for configuring own cable

Round male connector, IP65, 69 QC0010

type C091 D, 1 2-pin, Amphenol,

for configuring own cable

Adapter cable, from round connector to PC, YCC 01 -0017D2

25-pin D-Submini, 0.2 m long (YD0521S required)

PC ddapter cable, 25-pin D-Submini / 9-contact

D-Submini, 0.25 m long (YDO 52 IS and

YCC 01 -0017D2 required) 6965619
