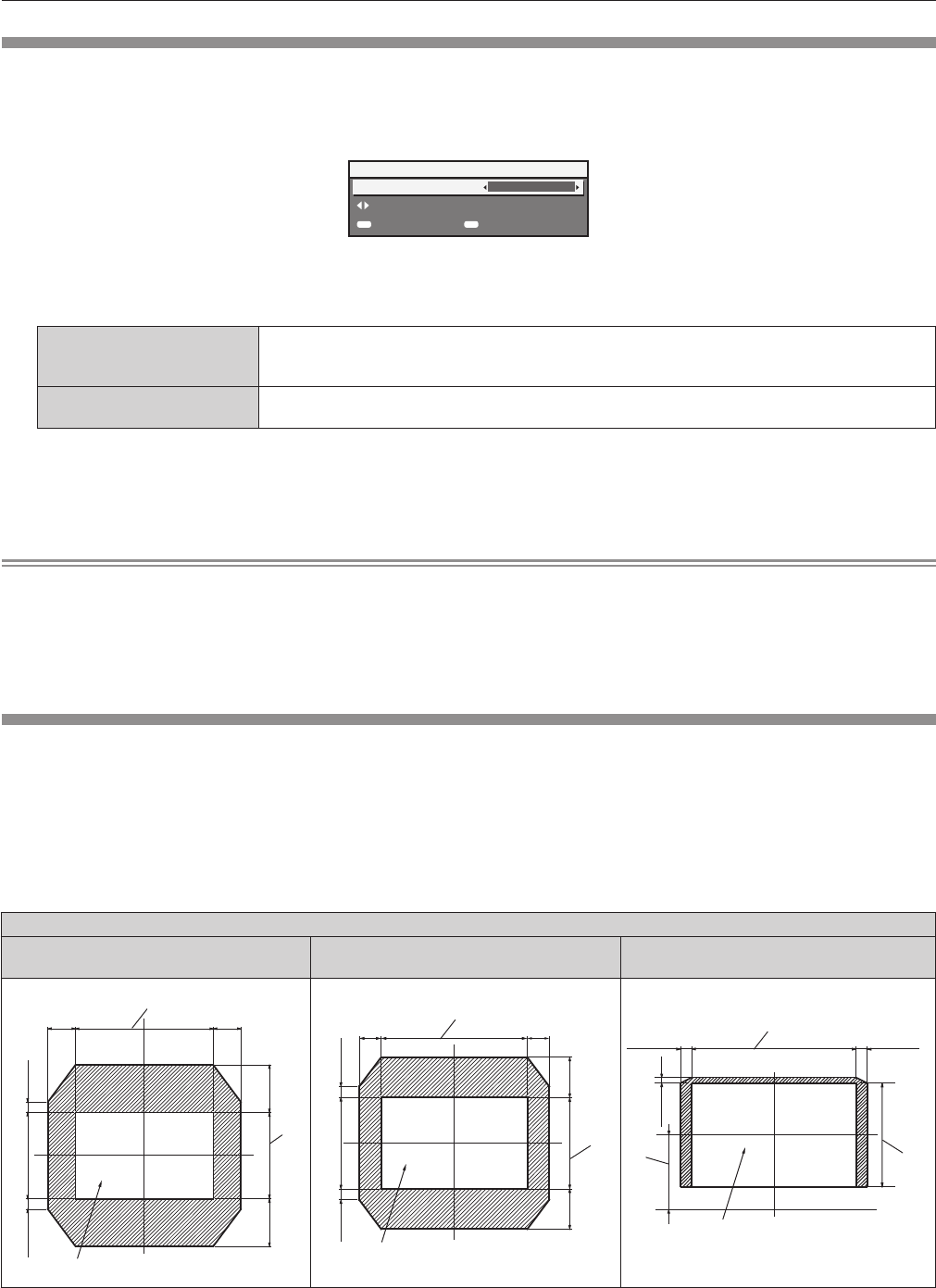

Setting the lens position
To move the lens position to the home position or the lens standard position, perform the following procedure.
1) Press the <DEFAULT> button on the remote control while the shift adjustment screen is displayed.
f The [HOME POSITION] screen is displayed.
LENS
HOME POSITION
EXECUTE
CANCEL
ENTER
MENU
NORMAL
CHANGE
2) Press qw to switch the item.
f The items will switch each time you press the button.
[NORMAL]
Moves the lens to the home position.
Select this item when replacing or removing the projection lens. Select this item when the Fixed-focus
Lens (Model No.: ET-D75LE50) is used for projection.
[D75LE90]
Moves the lens to the ET-D75LE90 lens standard position.
Select this item when the Fixed-focus Lens (Model No.: ET-D75LE90) is used for projection.
3) Press the <ENTER> button.
f [PROGRESS] is displayed in the [HOME POSITION] screen, and the lens position returns to the home
position or the lens standard position.
Note
f Complete the operation within approximately 5 seconds after the [HOME POSITION] screen is displayed. The [HOME POSITION] screen
will disappear after time limit.
f The home position of the lens is used when the lens is being replaced or when the projector is being stored, and it is not the optical center of
the screen.
f You can also display the [HOME POSITION] screen by pressing the <LENS> button on the control panel or the <SHIFT> button on the
remote control for at least three seconds.
Adjustment range by the lens position shift (optical shift)
Perform the lens position shift within the adjustment range.
The focus may change when the lens position is shifted out of the adjustment range. This is because the shift
of the lens is restricted to protect the optical parts. Projection position can be adjusted with the optical axis shift
function based on the position of the projected image in the home position (standard projection position) or the
position of the projected image in the ET-D75LE90 lens standard position (reference projection position).
r For PT-RZ12K
Projection lens Model No.
ET-D75LE8, ET-D75LE10, ET-D75LE20,
ET-D75LE30, ET-D75LE40
ET-D75LE6 ET-D75LE90
Projected image width H
Standard projection position
Projected image height V
0.2 H 0.2 H
0.12 V 0.12 V
0.55 V
0.55 V
Projected image width H
Standard projection position
Projected image height V
0.15 H
0.15 H
0.12 V
0.12 V
0.44 V
0.44 V
Projected image width H
Reference projection position
0.06 H
0.06 H
Projected image height V
0.05 V
0.73 V (standard position)
