Removing the projection lens
Remove the projection lens using the following procedure.

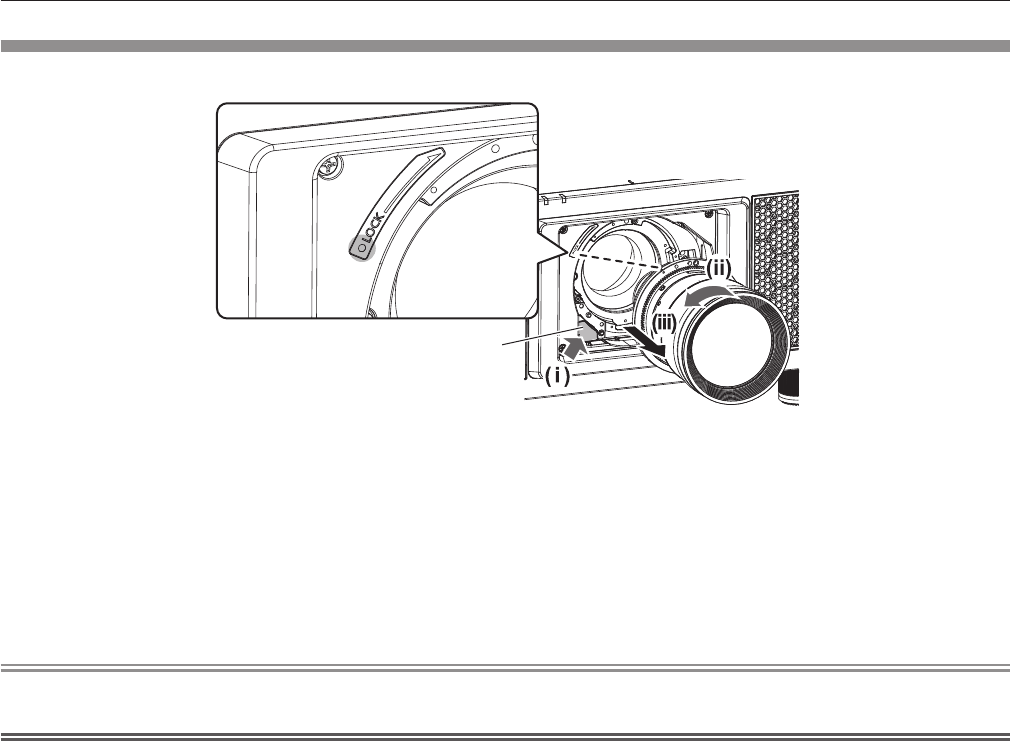

Lens release button
Fig. 1
1) Remove the lens fixing screw.
f Use a Phillips screwdriver to remove the rst screw to the right of the mark on the projection lens (orange).
2) Remove the projection lens by turning it counterclockwise while pressing the lens release button.
(Fig. 1)
f Turn the projection lens counterclockwise until the mark on the projection lens (orange) is aligned with the
mark on the projector (E to the left of LOCK).
Note
f Some lenses may not have a screw hole to use to secure the projection lens.
Attention
f Store the removed projection lens where it will be free from vibration and impact.
f Store the removed lens xing screw in a safe place.
