Chapter 1 Preparation — About your projector
30 - ENGLISH

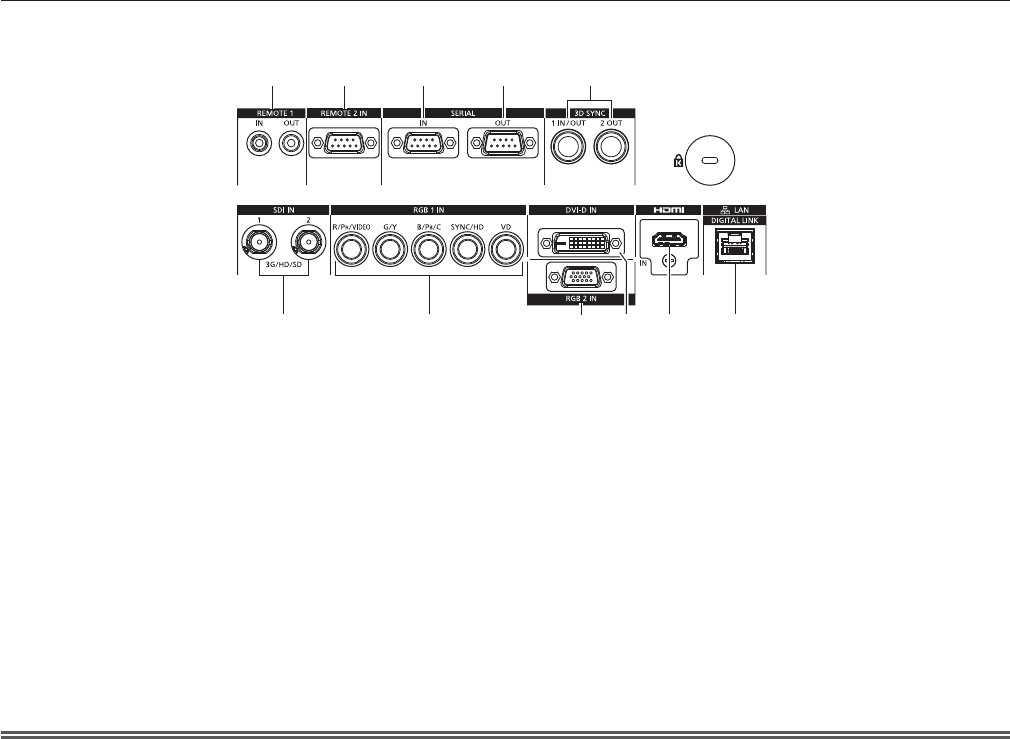

r Connecting terminals
1 2 3 4 5
7 8 9 10 116
1 <REMOTE 1 IN> terminal/<REMOTE 1 OUT> terminal
These are terminals to connect the remote control for serial
control in a multiple projector environment.
2 <REMOTE 2 IN> terminal
This is a terminal to remotely control the projector using the
external control circuit.
3 <SERIAL IN> terminal
This is the RS-232C compatible terminal to externally control
the projector by connecting a computer.
4 <SERIAL OUT> terminal
This is a terminal to output the signal connected to the <SERIAL
IN> terminal.
5 <3D SYNC 1 IN/OUT> terminal/<3D SYNC 2 OUT> terminal
These are terminals to input or output control signals when
using the projector in 3D systems.
6 <SDI IN 1> terminal/<SDI IN 2> terminal
These are terminals to input SDI signals.
7 <RGB 1 IN> terminals (<R/P
R
/VIDEO>, <G/Y>, <B/P
B
/C>,
<SYNC/HD>, <VD>)
These are terminals to input RGB signals, YC
B
C
R
/YP
B
P
R
signals, Y/C signals, or video signals.
8 <RGB 2 IN> terminal
This is a terminal to input RGB signals or YC
B
C
R
/YP
B
P
R
signals.
9 <DVI-D IN> terminal
This is the terminal to input DVI-D signals.
10 <HDMI IN> terminal
This is the terminal to input HDMI signals.
11 <DIGITAL LINK/LAN> terminal
This is the LAN terminal to connect to the network. This is also
used when connecting a video signal transmission device via
the LAN terminal.
Attention
f When a LAN cable is directly connected to the projector, the network connection must be made indoors.
