Quick Guide

1 - English

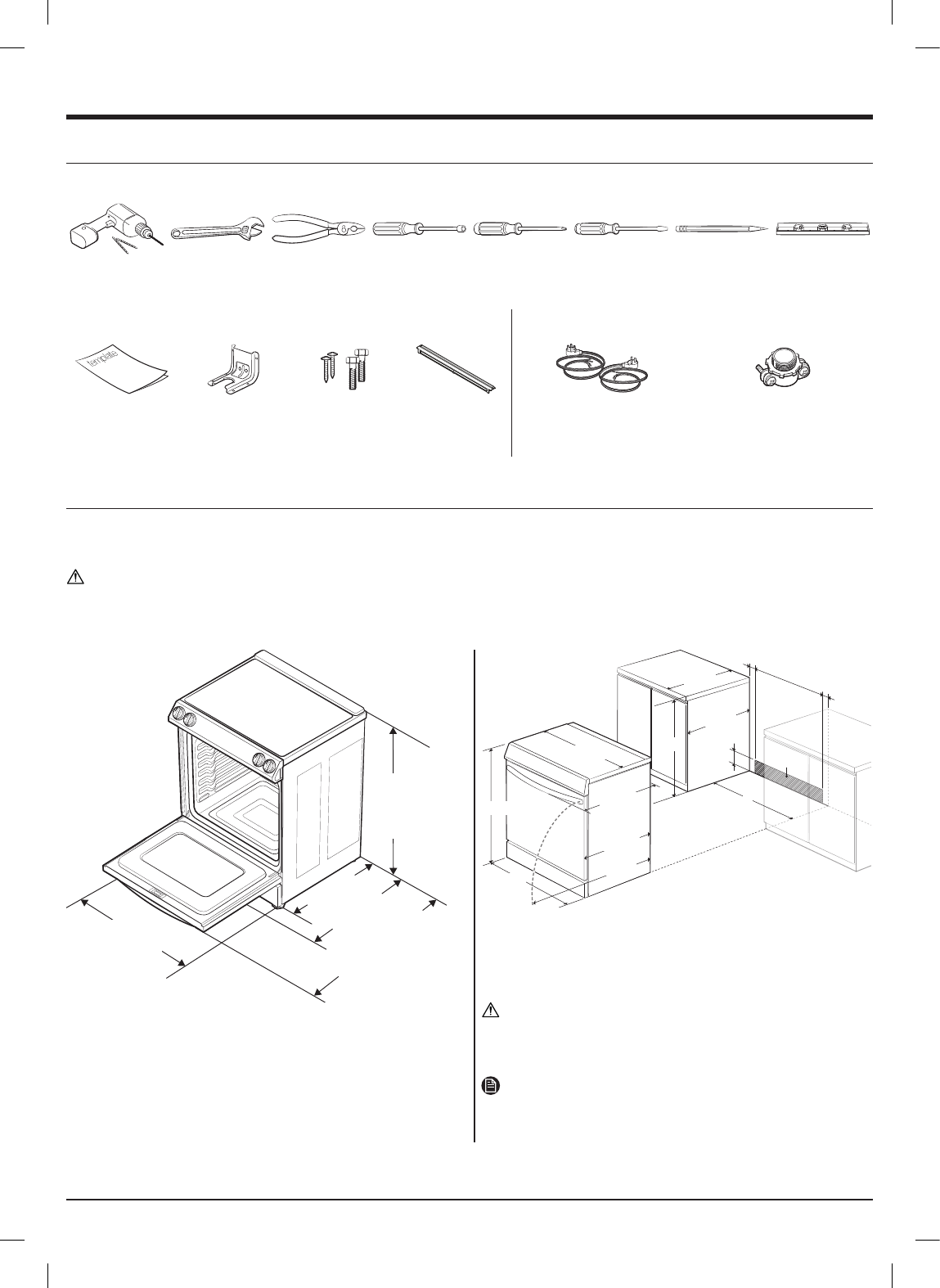

Preparing to install the range
Prepare tools & Parts
The tools you will need
Drill Adjustable
Wrench
Pliers 1⁄4" Nut Driver Phillips
Screwdriver
Flat
Screwdriver
Pencil Level
What’s included with your range Additional materials you may need
Anti-tip Bracket
Template
Anti-Tip Bracket Screws
(short:2 ea,
long:2 ea)
Filler Kit 4-Wire Cord or 3-Wire Cord
(UL Approved 40 or 50 AMP)
Strain Relief
(For Conduit Installation Only)
Checking the installation site
Clearances and dimensions
To install the range, refer to the following gure.
CAUTION
This range has been designed to comply with the maximum allowable wood cabinet temperatures of 194 °F. Make sure the wall covering,
countertops, and cabinets around the range can withstand the heat (up to 194 °F) generated by the range. If not, discoloration, delamination, or
melting may occur.
36 in
(914.4 mm) Min.
36
3
/4 in
(933.45 mm) Max.
29
15
/16 in
(761.0 mm)
26
7
/
16
in
(671.7 mm)
28
11
/
16
in
(728.6 mm)
With handle
49
1
/
4
in (1250.3 mm)
Door fully open
A
B
36"-36
3
⁄4"
29
15
⁄16"
29
3
⁄4"
28
11
⁄16"
26
7
⁄16"
49
1
⁄4"
25"
24"
6"
35
7
⁄8"
24"
3"
3"
A. Cabinet opening min 30" (76.2 cm)
B. Acceptable electrical outlet area
IMPORTANT: If your cabinets are over 36
3
⁄4" high, you must install this
range on a hard, heat resistant support that raises the surface of the
range so that it is about even with the countertop.
CAUTION
You must use the rear ller kit to install the range in a freestanding
cutout cabinet. For more information, see “Optional rear ller kit” as
shown below.
NOTE
If you install the product in a kitchen island, you must maintain
minimum 2
1
/2" from cutout to back edge of the countertop and
minimum 3" from cutout to side edges of the countertop.
