Setup
SETTING EX/ES MODE
When surround back speakers are connected, you can listen to 7.1 multi-channel sound using the built-in Dolby Digital
Surround EX or DTS ES decoder. This function works when a Dolby Digital or DTS source (such as a DVD player) is input, and
does not work with L.PCM and Dolby Digital 2 channel sources.
Press the SETUP/MENU button on the remote control.
Each time the button is pressed, the mode switches between SETUP
ENTER and SETUP OFF.

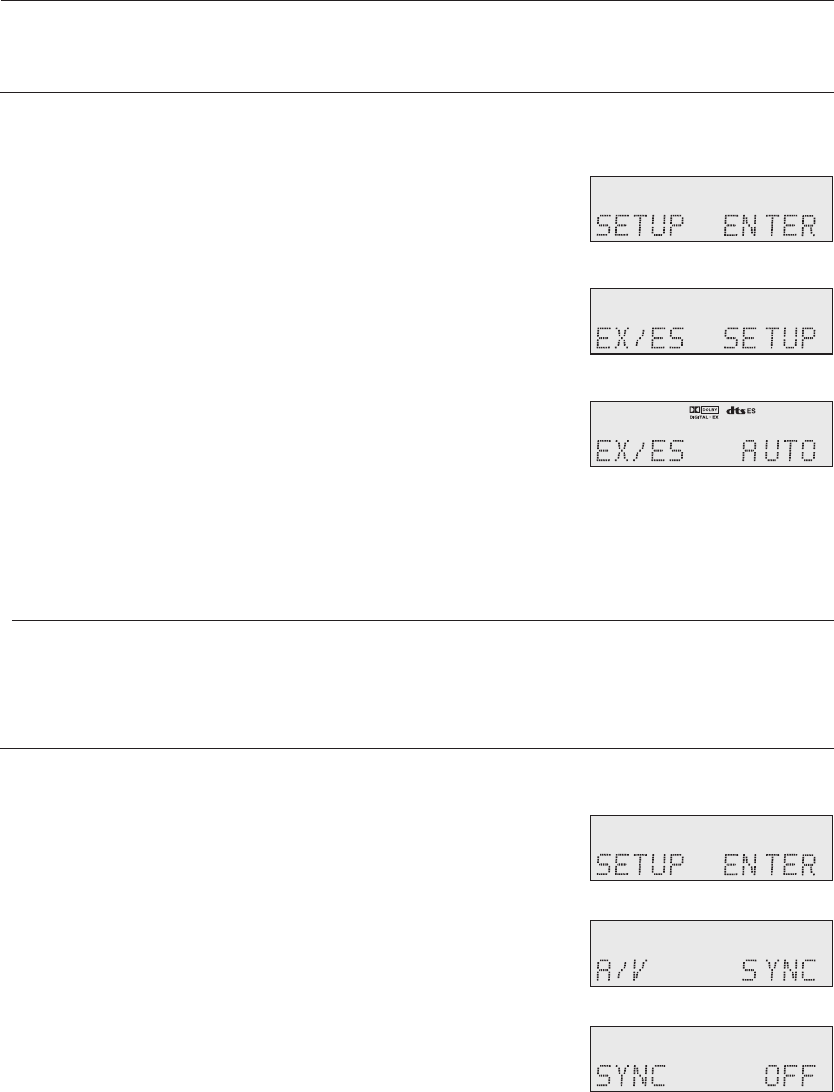

Press
the ENTER
button to select SETUP ENTER.
Press the
▲▼
buttons to select EX/ES SETUP, and then press the
ENTER or
►
button.
Press the
▲▼
buttons to set the EX/ES mode you want.
AUTO : If the unit receives an audio signal that it can recognize, it will
select an optimal decoder for playback in 7.1 channels.
If the amplifi er does not recognize the audio signal, it will not play in 7.1
channel automatically.
ON : Dolby Digital or DTS signal will be played in 7.1 channel using Dolby
Digital Surround EX / DTS ES decoder.
OFF : Dolby Digital Surround EX / DTS ES decoder will not be used for playback.
- To exit setup mode-
Press the SETUP/MENU button.
SETUP OFF appears on the display and Setup Mode is exited.
You cannot use DTS-ES without surround back speakers connected.
AV SYNC
Video may look slower than the audio if it is connected to a digital TV. If this occurs, adjust the audio delay time to
match the video.
Press the SETUP/MENU button on the remote control.
Each time the button is pressed, the mode switches between SETUP
ENTER and SETUP OFF.
Press the ENTER button to select SETUP ENTER.
Press the ▲▼ buttons to select A/V SYNC, and then press the ENTER or
► button.
Press the ▲▼ buttons to set the A/V Sync mode you want.
You can adjust it from OFF to 240MS in 10MS steps.
