SETTING THE TEST TONE
Use the test tone to check the speaker connection status or level.
Press the SETUP/MENU button on the remote control.
Each time the button is pressed, the mode switches between SETUP
ENTER and SETUP OFF.

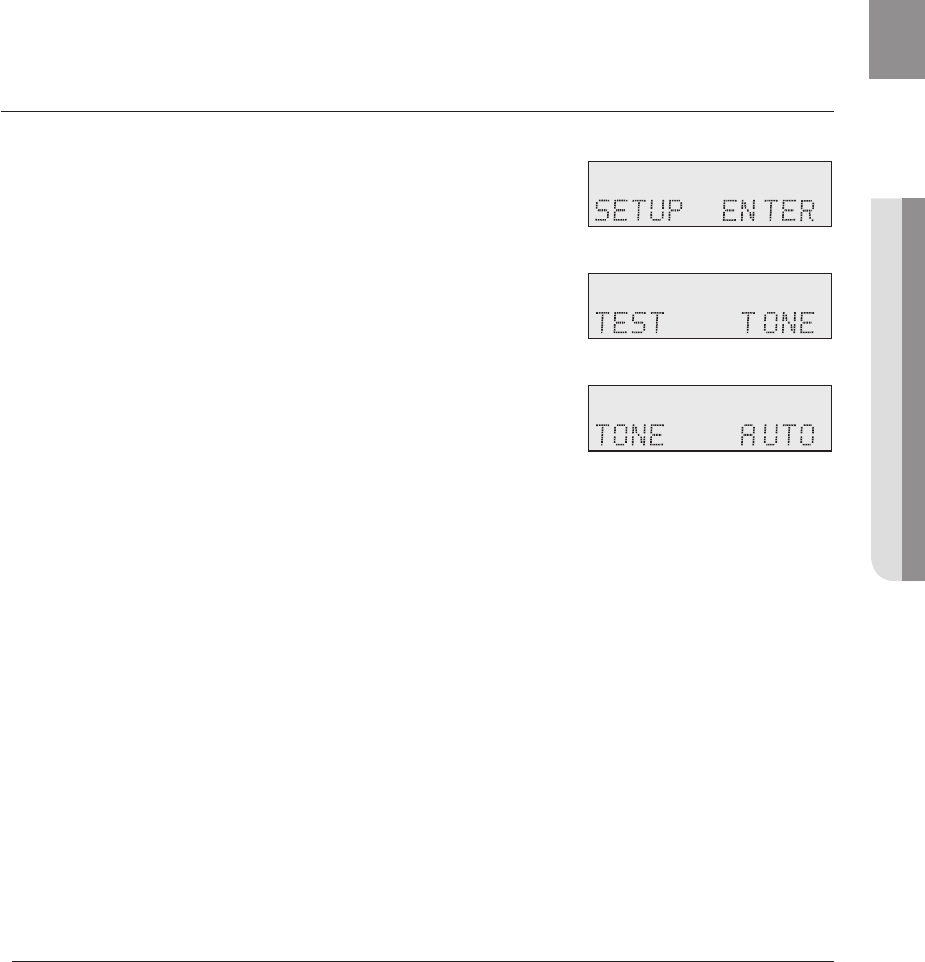

Press the ENTER button to select SETUP ENTER.
Press the
▲▼ buttons to select TEST TONE, and then press the ENTER
or ► button.
Press the
▲▼ buttons to select the option you want, and then press the
ENTER or ► button.
AUTO : Test signal will be automatically output as follows; F.L  CEN 
S.W  F.R  S.R  SBR  SBL  S.L.
- During test tone output, press the
▲▼ buttons to adjust the speaker
output level from -10 to +10 dB by 1 step.
MANUAL : Enables you to adjust the output level of the speaker
manually.
1) Press the ENTER or ► button to select the speaker you want.
Each time you press the ENTER button, F.L  CEN  S.W  F.R  S.R  SBR  SBL S.L will be
selected in turn.
2) Press the
▲▼ buttons to set the Test Tone mode you want.
You can adjust the speaker output level from -10 to +10dB by 1 step.
The sound gets quieter at -10dB and louder at +10dB.
- Test Tone Output -
• F.L (front left) : -10 ~ +10dB • CEN (center) : -10 ~ +10dB
• F.R (front right) : -10 ~ +10dB • S.W (subwoofer) : -10 ~ +10dB
• S L (surround left) : -10 ~ +10dB • SBL (surround back left) : -10 ~ +10dB
• S.R (surround right) : -10 ~ +10dB • SBR (surround back right) : -10 ~ +10dB
- To stop test tone -
Press the SETUP/MENU button once.
SETUP OFF appears on the display and test tone stops.
In the Dolby Pro Logic IIz mode, test signal will be automatically output as follows : F.L  FHL  CEN 
S.W  FHR  F.R  S.R  S.L.
