Setup
SETTING THE SPEAKER LEVEL
You can set the balance and level of speakers.

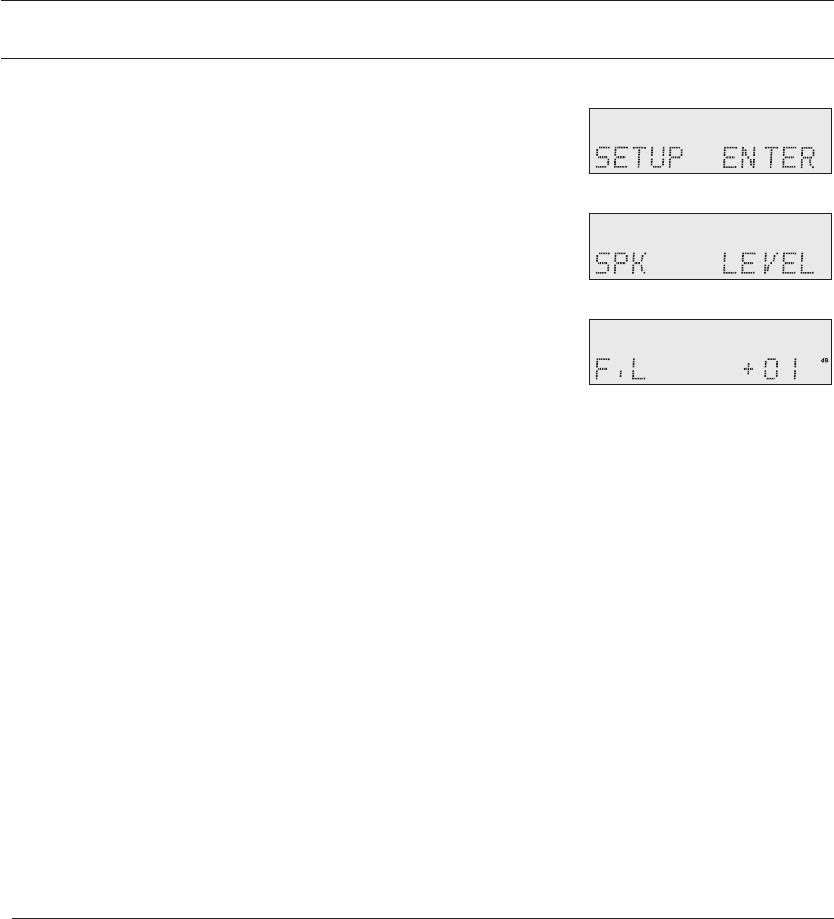

Press the SETUP/MENU button on the remote control.
Each time the button is pressed, the mode switches between SETUP
ENTER and SETUP OFF.
Press the ENTER button to select SETUP ENTER.
Press the
▲▼
buttons to select SPK LEVEL, and then press the ENTER
or
►
button.
Press the
▲▼
buttons to select the speaker you want, and then press the
ENTER or ► button.
Each time you press this button, F.L F.R CEN S.L S.R SBL
SBR S.W will be selected in turn.
Press the
▲▼
buttons to set the Speaker Level mode.
You can adjust it from -10 to +10dB in 1 step increments.
The sound gets quieter at -10dB and louder at +10dB.
- To exit setup mode -
Press the SETUP/MENU button.
SETUP OFF appears on the display and Setup Mode is exited.
- Setting Speaker Level -
• F.L (front left) : -10 ~ +10dB • SW (subwoofer) : -10 ~ +10dB
• F.R (front right) : -10 ~ +10dB • SBL (surround back left) : -10 ~ +10dB
• S.L (surround left) : -10 ~ +10dB • SBR (surround back right) : -10 ~ +10dB
• S.R (surround right) : -10 ~ +10dB • FHL (front height left) : -10 ~ +10dB
• CEN (center) : -10 ~ +10dB • FHR (front height right) : -10 ~ +10dB
If Dolby Pro Logic IIz is set to On, the Surround Back speaker (SBL/SBR) is changed to the Front Height
Speaker (FHL/FHR).
