● CONNECTIONS

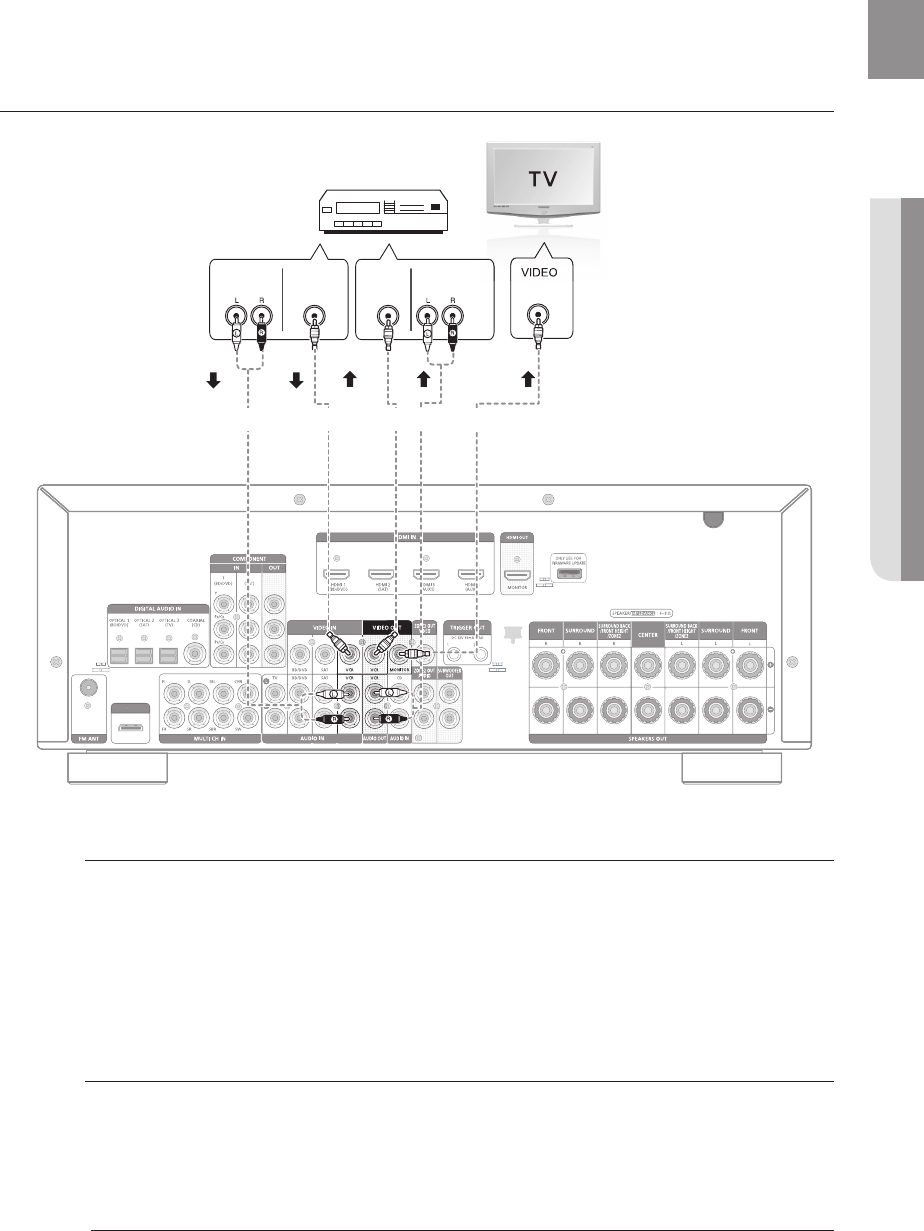

CONNECTING A VCR
Video Connection
For playback
Connect a Video cable from the VIDEO IN (VCR) jack on the back of your AV Receiver to the Video
Output jack on your VCR.
For recording
Connect a Video cable from the VIDEO OUT (VCR) jack on the back of your AV Receiver to the Video
Input jack on your VCR.
Audio Connection
For playback
Connect AUDIO IN (VCR) on your AV Receiver to the Audio Out of the VCR.
For recording
Connect AUDIO OUT (VCR) on your AV Receiver to the Audio In of the VCR.
Disconnect the power plug from the outlet if you will not use this unit for a long period of time.
