17
ENG
● CONNECTIONS
Surround Speakers
Place these speakers behind your listening position.
If there isn't enough room, place these speakers so they face each other.
Place them about 2 to 3 feet (60 to 90cm) above your ears, facing slightly downward.
Unlike the front and center speakers, the surround speakers are used to handle mainly sound effects
and sound will not come from them all the time.
Surround Back Speakers
SBL SBR
If you are using two rear center speakers, place them behind the listening position.
Place the surround back speaker about 2.3-3.3 feet (70 cm to 1 m).
Front Height Speakers
FHL FHR
(Using Dolby Pro Logic IIz)
When using Dolby Pro Logic IIz, place the Surround Back Speakers on the FHL, FHR position above the
front L and front R speakers at least 3.3 feet(1 m) above each one.
When you attach the speakers to the wall, make sure to fasten them tightly so they do not fall off.

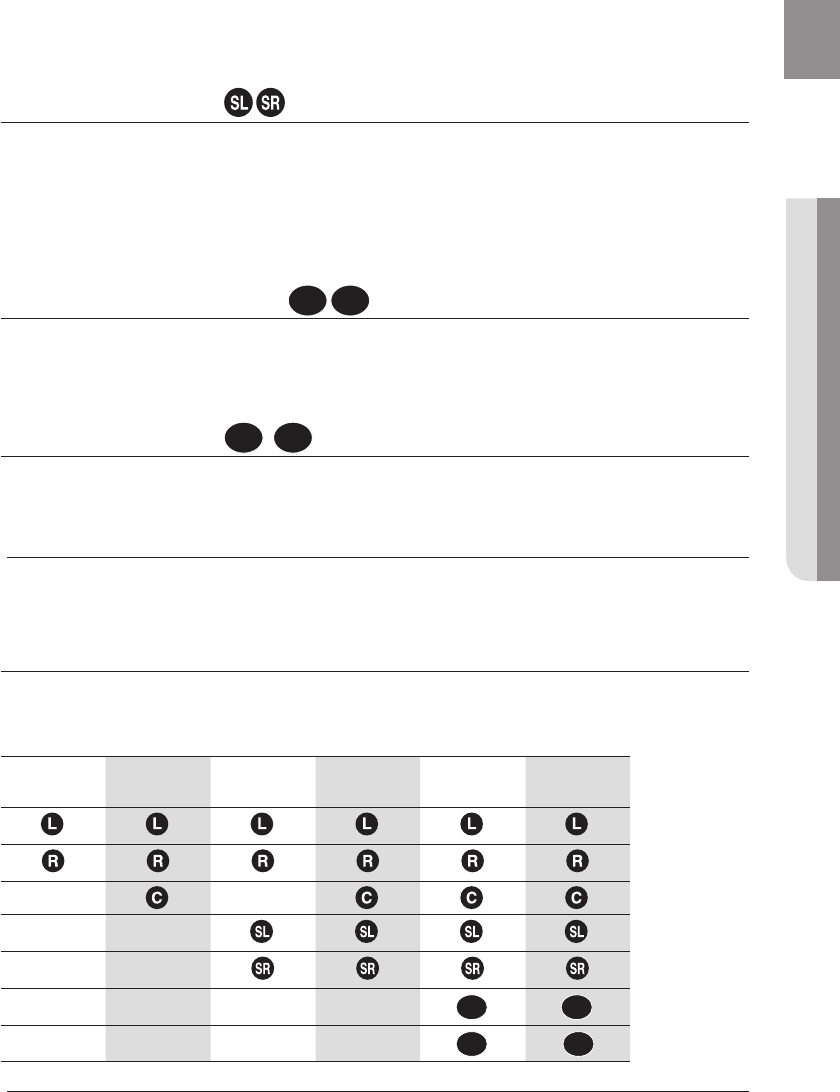

Speaker Confi guration
For the best surround-sound experience, you should connect seven speakers and a powered subwoofer.
The following table shows which channels you should use based on the number of speakers you have.
2 speakers 3 speakers 4 speakers 5 speakers
7 speakers
(DPL IIx)
7 speakers
(DPL IIz)
SBL
FHL
SBR
FHR
No matter how many speakers you use, a powered subwoofer is recommended for powerful and solid bass.
If you place a speaker near your TV set, screen color may be distorted because of the magnetic fi eld generated
by the speaker. If this occurs, place the speaker away from your TV set.
M
M
