16
Connections

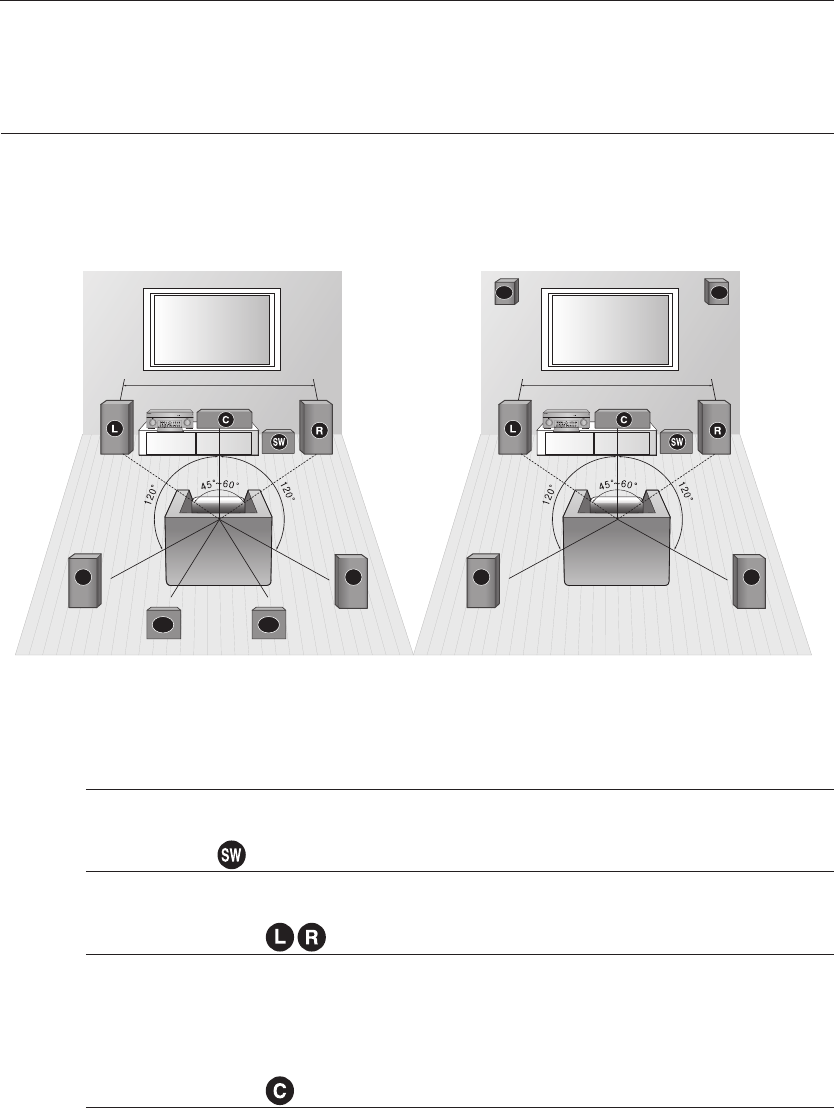

SPEAKER POSITIONING
There are two methods for positioning the speakers.
When using Dolby Pro Logic IIz, place the Surround Back Speakers in the FHL, FHR position and connect them to
SURROUND BACK/ FRONT HEIGHT Jack.
Position of AV Receiver
Place the AV Receiver on a dedicated stand or rack.
Subwoofer
The position of the subwoofer is not so critical. Place it anywhere you like.
Front Speakers
Place these speakers in front of your listening position, facing inwards (about 45°) toward you.
Place the speakers so that their tweeters will be at the same height as your ears.
Align the front face of the front speakers with the front face of the center speaker or place them slightly
in front of the center speaker.
Center speaker
It is best to install it at the same height as the front speakers.
You can also install it directly over or under the TV.
This section involves various methods of connecting the AV receiver to other external components.
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
SL
SBL
SBR
SR
6.6~9.8 feet (2~3m)
SL SR
6.6~9.8 feet (2~3m)
FHL FHR
L, R, C, SW, SL, SR, SBL, SBR ( Dolby Pro Logic IIx ) L, R, C, SW, SL, SR, FHL, FHR( Dolby Pro Logic IIz)
