Technical information


Proc Sheet 2 01
myC3-2
5HPRYHDQG3ODFHWKHYLEUDWRU
1/1
7KLVRSHUDWLRQPXVWEHPDGHDIWHUOLFHQVH6$*(0
7RROV
-
Cross shaped screwdriver
- soldering iron
- Plait to be unsoldered
- F
lat screwdriver
3UHOLPLQDU\RSHUDWLRQ
1. Remove the battery ( Proc Sheet 0 01 ).
2. Remove the lower casing of mobile ( Proc Sheet 1 01 ).
5HPRYDOSURFHGXUH

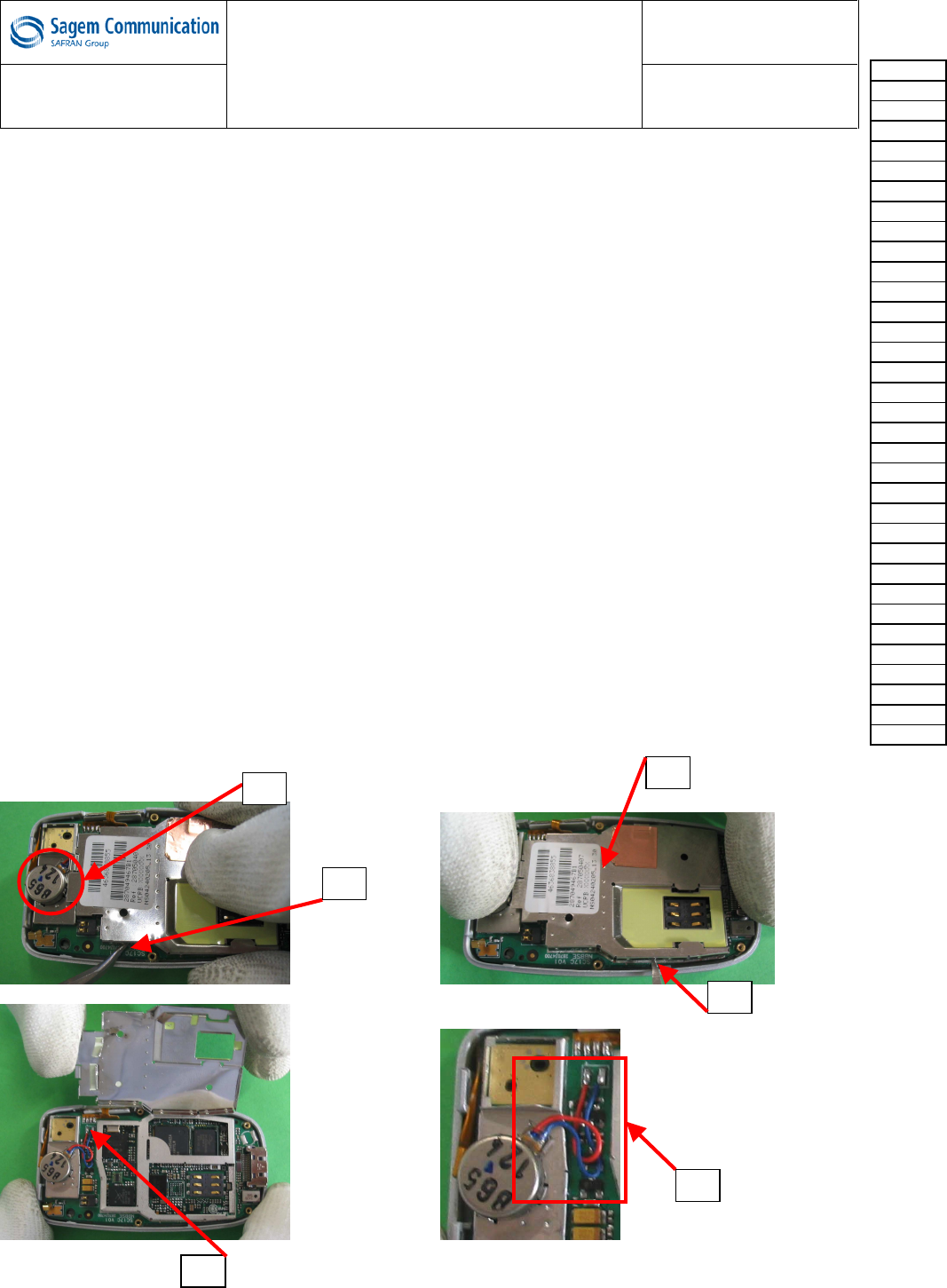

1. Remove the shield (1) by making control lever at the level of the two points of the shield (2 et 3).
2. Unsolder the vibrator (4).
3. Unstick the vibrator of the camera shielding (5).
3ODFHPHQWSURFHGXUH
1. Solder a vibrator (4) and position this one on the camera shield well by putting the threads as front (6).
2. Beat the shield on the frame shield.
)XUWKHURSHUDWLRQV
1. Place the lower casing of mobile ( Proc Sheet 1 01 ).
2. Place the battery ( Proc Sheet 0 01 ).
2
1
3
4
5
6
