Technical information


Fiche Proc 1 22
myC3-2
5HPRYHDQG3ODFHWKHYROXPHFRQWURONH\
1/1
7RROV
- Not applicable
3UHOLPLQDU\RSHUDWLRQ
1. Remove the battery ( Proc Sheet 0 01 ).
2. Remove the lower casing of the mobile ( Proc Sheet 1 01 ).
5HPRYDOSURFHGXUH

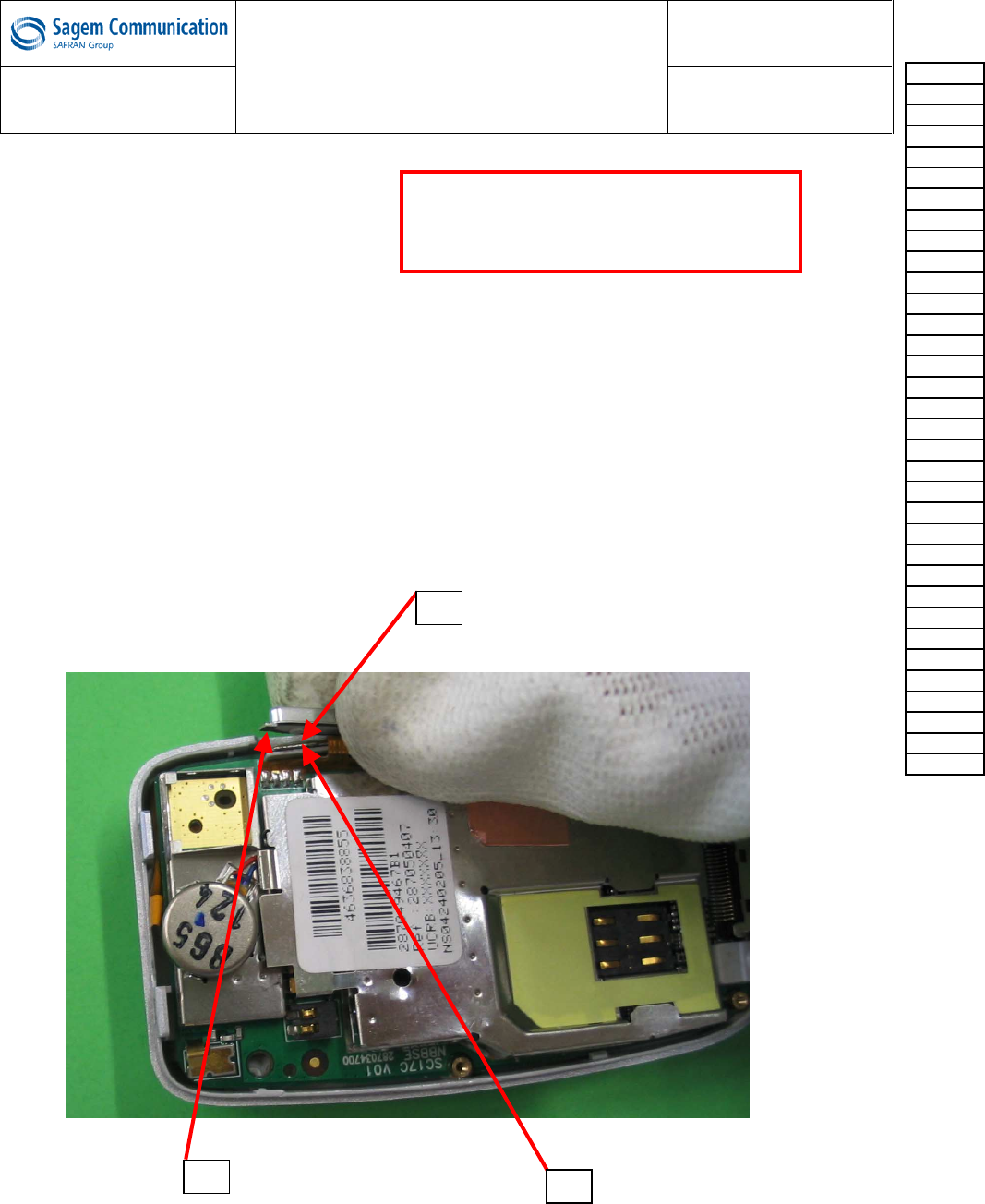

1. Remove the volume control key (1) from the casing in the upper housing of the mobile (2).
3ODFHPHQWSURFHGXUH
1. Position the volume control key (1) in the casing by positioning the holding clip (3) to the left.
)XUWKHURSHUDWLRQV
1. Place the lower casing of the mobile ( Proc Sheet 1 01 ).
2. Place the battery ( Proc Sheet 0 01 ).
2
3
1
Risk of the procedure :
• Respect the position of the volume
control key.
