Technical information


Proc Sheet 1 05
myC3-2
5HPRYHDQG3ODFHWKH0LFURUXEEH U
1/1
7RROV
- Tweezers
3UHOLPLQDU\RSHUDWLRQ
1. Remove the battery ( Proc Sheet 0 01 ).
2. Remove the lower casing of mobile ( Proc Sheet 1 01 ).
5HPRYDOSURFHGXUH

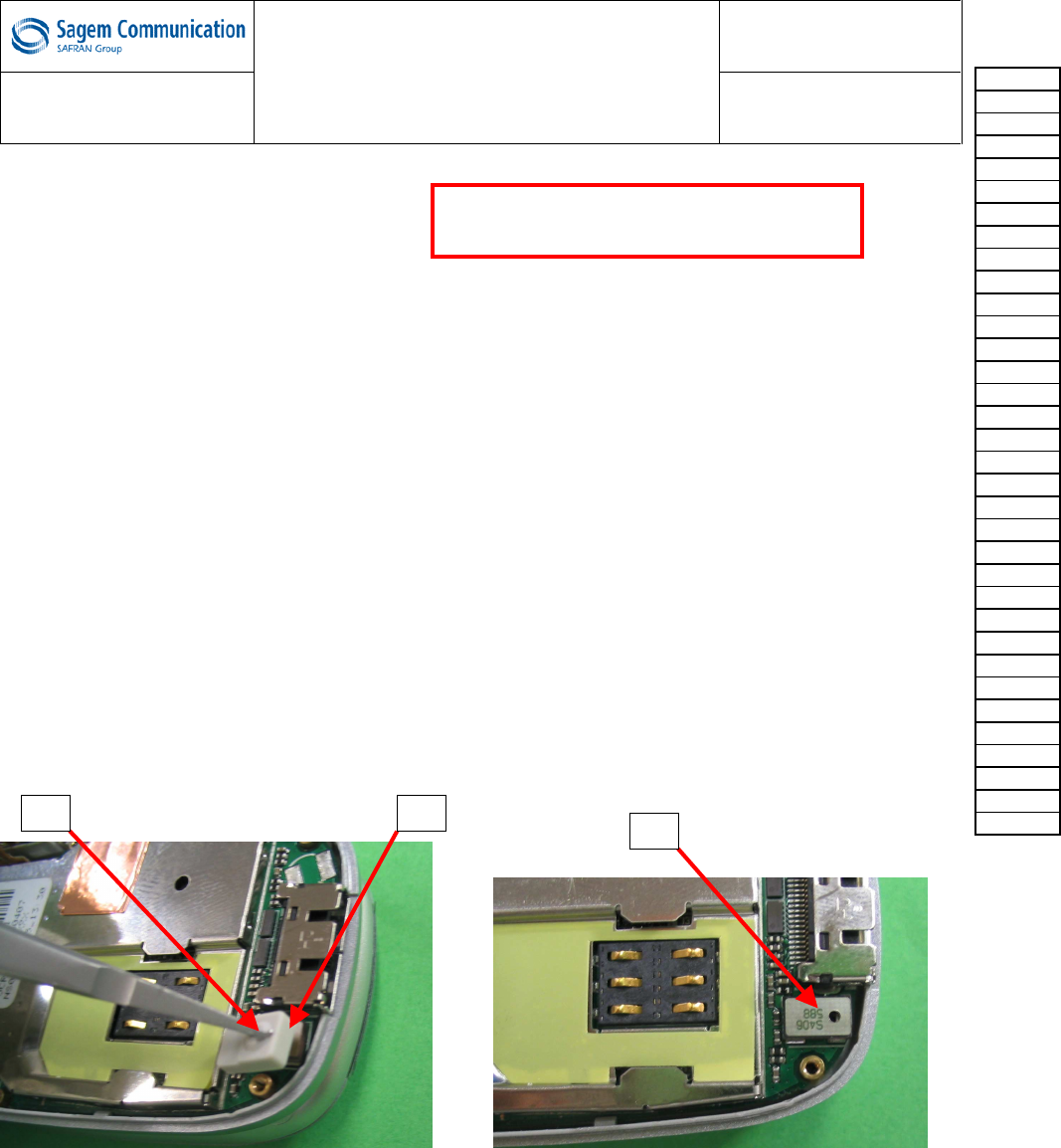

1. Catch hold of and take out the micro rubber by putting the point of tweezers in the hole of micro rubber
(1).
3ODFHPHQWSURFHGXUH
1. Take a micro rubber (2) and position it on the micro (3).
)XUWKHURSHUDWLRQV
1. Place the lower casing of mobile ( Proc Sheet 1 01 ).
2. Place the battery ( Proc Sheet 0 01 ).
2
1
2
Risk of the procedure :
• Put the Micro rubber back to front
Procedure
Proc 0 01
Proc 1 01
Proc 1 02
Proc 1 03
Proc 1 04
Proc 1 05
Proc 1 08
Proc 1 10
Proc 1 18
Proc 1 20
Proc 1 22
Proc 2 01
Proc 2 03
Proc 3 01
Proc 3 02
Proc 4 01
Symptom
Symp 01
Symp 02
Symp 03
Symp 04
Symp 05
Symp 06
Symp 07
Symp 08
Symp 10
Test
Test 01
Test 02
Test 03
Test 04
Test 05
Test 06
Contents REF MTB DTS 1- Indice D - November 10 2005 Page 5-12
