Technical information


Proc Sheet 1 04
myC3-2
5HPRYHDQG3ODFHWKHNH\SDG
1/1
7RROV
- Tweezers
3UHOLPLQDU\RSHUDWLRQ
1. Remove the battery ( Proc Sheet 0 01 ).
2. Remove the lower casing of mobile ( Proc Sheet 1 01 ).
3. Remove the volume control key ( Proc Sheet 1 22 ).
5HPRYDOSURFHGXUH

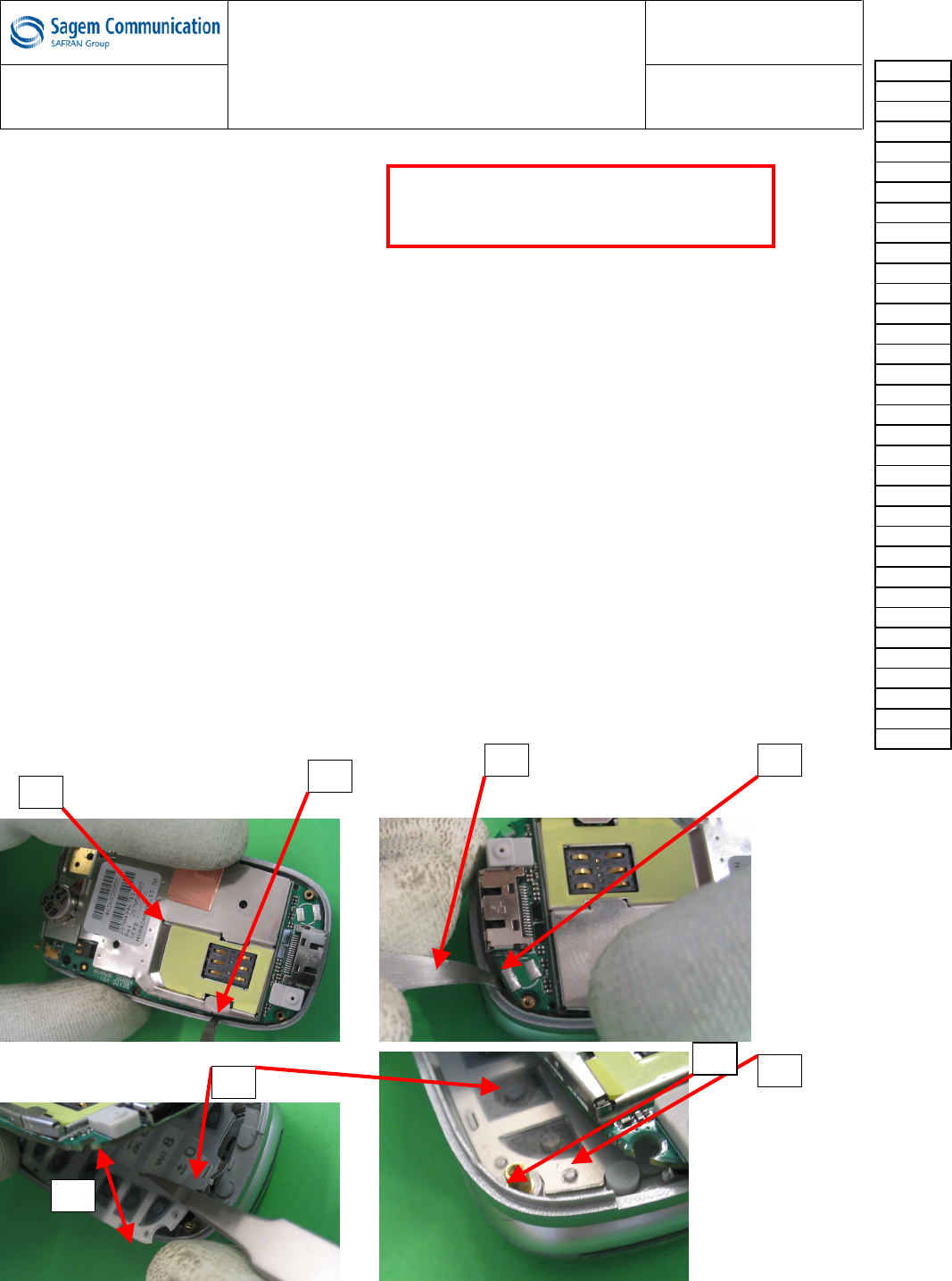

1. Take off the MMI II (1) by means of the tweezers (2) for specified places (3 and 4).
2. Remove the keypad (5) by means of the tweezers (2).
3. Don’t raise the MMI II in an excessive way (6) so as not to damage the FPC connector and the
volume control key.
3ODFHPHQWSURFHGXUH
1. Position a keypad (5) in its place.
2. Verify that the keypad sits well on the locating points ( 7 and 8).
)XUWKHURSHUDWLRQV
1. Place the volume control key ( Proc Sheet 1 22 ).
2. Place the lower casing of mobile ( Proc Sheet 1 01 ).
3. Place the battery ( Proc Sheet 0 01 ).
2
3
5
Risk of the procedure :
• Damage the FPC connector.
•
Damage the volume control key.
6
1
4
7
8
Procedure
Proc 0 01
Proc 1 01
Proc 1 02
Proc 1 03
Proc 1 04
Proc 1 05
Proc 1 08
Proc 1 10
Proc 1 18
Proc 1 20
Proc 1 22
Proc 2 01
Proc 2 03
Proc 3 01
Proc 3 02
Proc 4 01
Symptom
Symp 01
Symp 02
Symp 03
Symp 04
Symp 05
Symp 06
Symp 07
Symp 08
Symp 10
Test
Test 01
Test 02
Test 03
Test 04
Test 05
Test 06
Contents REF MTB DTS 1- Indice D - November 10 2005 Page 5-11
