Technical information


Proc Sheet 1 03
myC3-2
5HPRYHDQG3ODFHWKHEDWWHU\UXEEHU
1/1
7RROV
- Tweezers
3UHOLPLQDU\RSHUDWLRQ
1. Remove the battery ( Proc Sheet 0 01 ).
2. Remove the lower casing of mobile ( Proc Sheet 1 01 ).
5HPRYDOSURFHGXUH

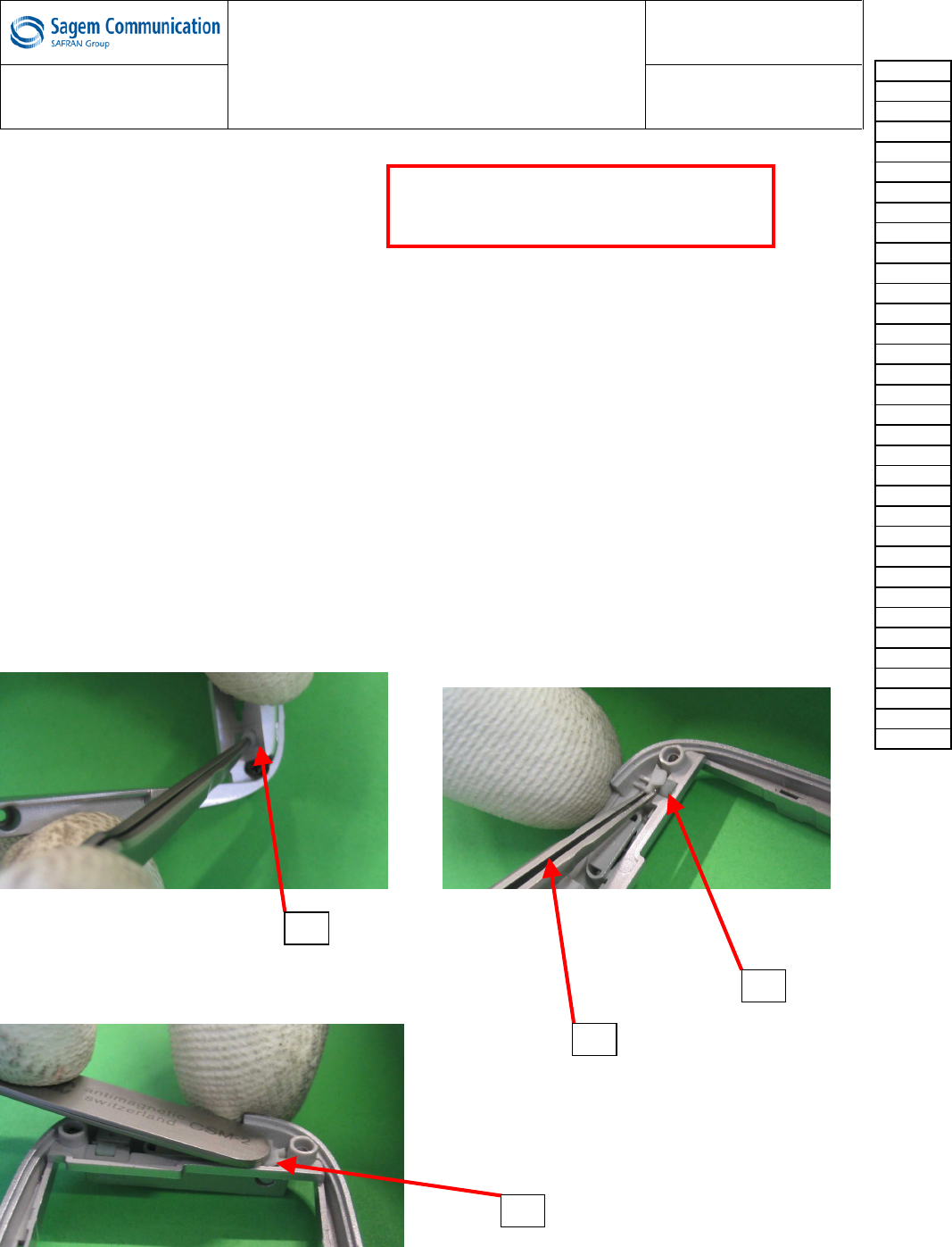

1. Press firmly by means of a tweezers on the battery buffer (4).
3ODFHPHQWSURFHGXUH
1. Position the battery buffer (1) by means of the tweezers (2).
2. Press by means of the tweezers (3) to position battery buffer correctly (1).
)XUWKHURSHUDWLRQV
1. Place the lower casing of mobile ( Proc Sheet 1 01 ).
2. Place the battery ( Proc Sheet 0 01 ).
2
1
4
3
Risk of the procedure :
• Damage the battery buffer.
•
Damage the lower casing.
Procedure
Proc 0 01
Proc 1 01
Proc 1 02
Proc 1 03
Proc 1 04
Proc 1 05
Proc 1 08
Proc 1 10
Proc 1 18
Proc 1 20
Proc 1 22
Proc 2 01
Proc 2 03
Proc 3 01
Proc 3 02
Proc 4 01
Symptom
Symp 01
Symp 02
Symp 03
Symp 04
Symp 05
Symp 06
Symp 07
Symp 08
Symp 10
Test
Test 01
Test 02
Test 03
Test 04
Test 05
Test 06
Contents REF MTB DTS 1- Indice D - November 10 2005 Page 5-10
