Technical information


Proc Sheet 1 02
myC3-2
5HPRYHDQG3ODFHWKHDQWHQQD
1/1
7RROV
- Screwdriver 725;reference 
3UHOLPLQDU\RSHUDWLRQ
1. Remove the battery ( Proc Sheet 0 01 ).
2. Remove the lower casing of the mobile ( Proc Sheet 1 01 ).
5HPRYDOSURFHGXUH

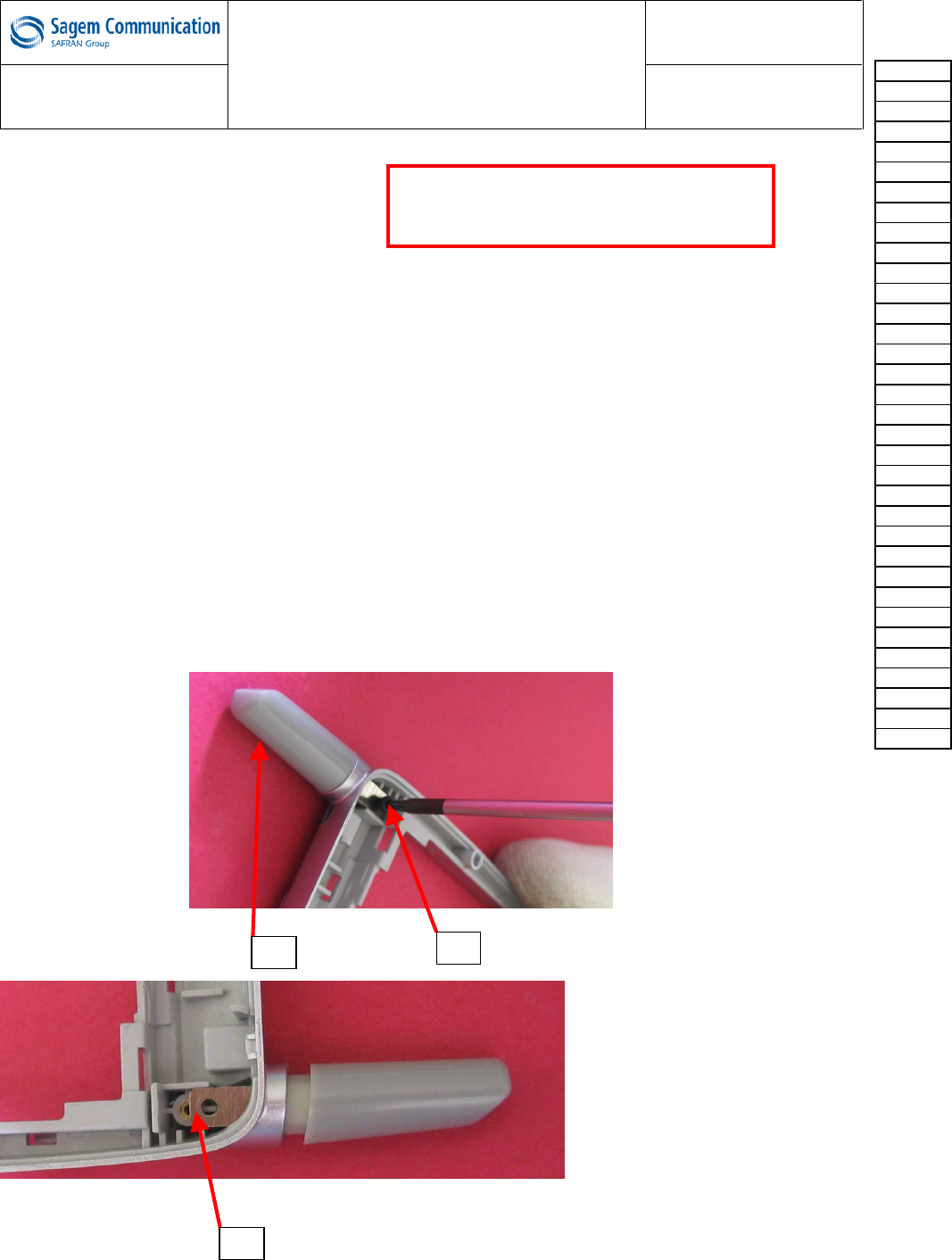

1. Remove the fixing screw(2) of the antenna (1).
2. Take off the antenna (1).
3ODFHPHQWSURFHGXUH
1. Position the antenna (1) in its slot, carefully inserting correctly the contact of the antenna (3).
2. Position and screw to the torque of 1P the screw fixing (2) the antenna.
)XUWKHURSHUDWLRQV
1. Place the lower casing of the mobile ( Proc Sheet 1 01).
2. Place the battery ( Proc Sheet 0 01 ).
3. Carry out the radio test ( Test Sheet 05 ).
2
3
1
