Technical information


Proc Sheet 1 01
myC3-2
5HPRYHDQG3ODFHWKHORZHUFDVLQJRIPRELOH
1/1
7RROV
-
Cross shaped screwdriver
- Fixture for screwing
3UHOLPLQDU\RSHUDWLRQ
1. Remove the battery ( Proc Sheet 0 01 ).
5HPRYDOSURFHGXUH

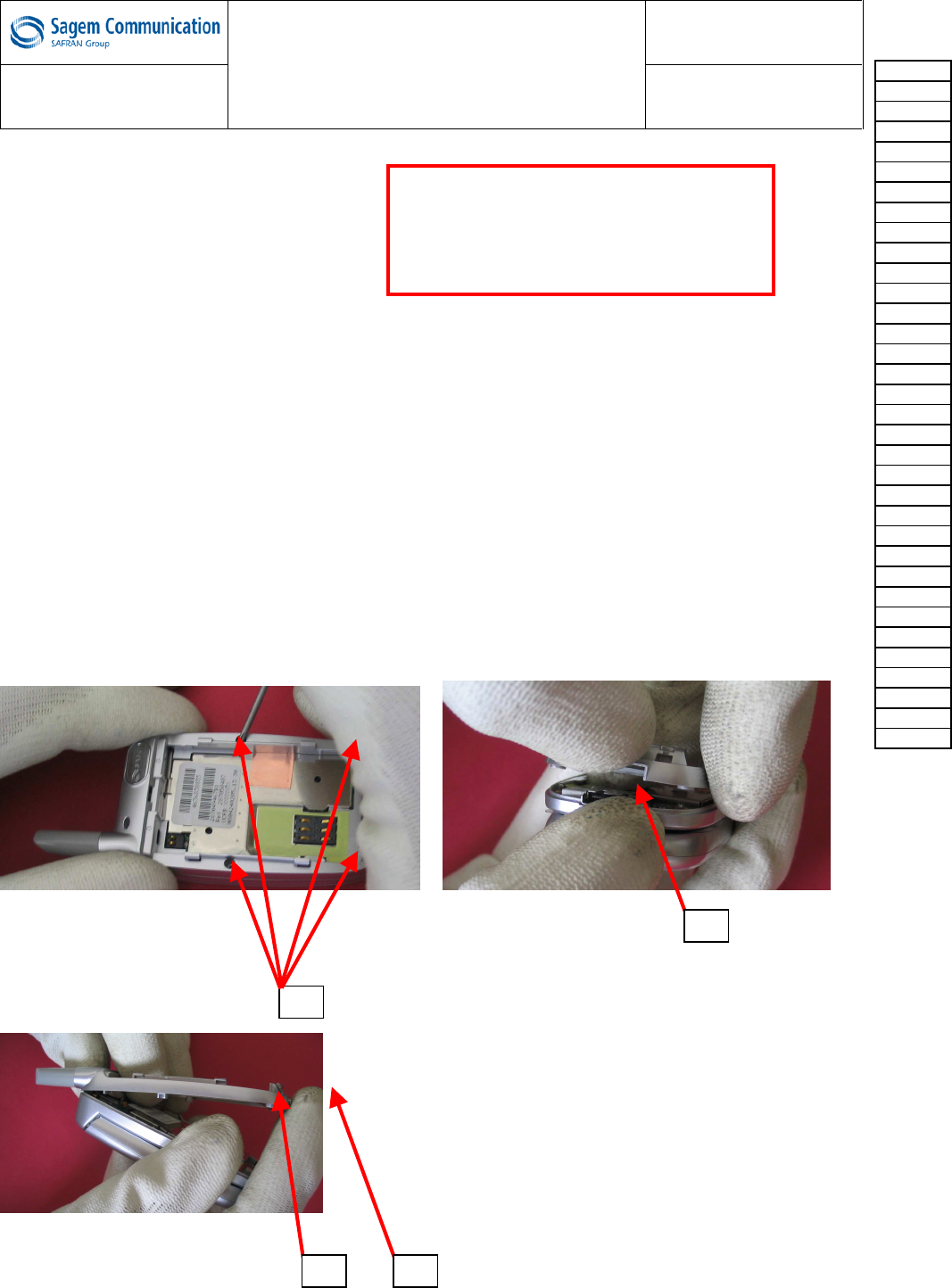

1. Remove the four fixing screws (1) from the assembled lower casing (2).
2. Lift delicately the assembled lower casing (2) by beginning with the bottom (3).
3. Take off the assembled lower casing (2).
3ODFHPHQWSURFHGXUH
1. Place the new assembled lower casing (2) by positioning the top first (4), then put the bottom in place
until the assembly is complete.
2. Position the mobile on the tool and screw to a torque of 1P, the four fixing screws (1).
)XUWKHURSHUDWLRQV
1. Place the battery ( Proc Sheet 0 01 ).
3
4
1
2
Risk of the procedure :
• Mars on the back cover.
• Break clips of back cover.
• Destruction of the antenna blade.
