Annex A - Troubleshooting
SAGEM F@st™ 2604/2644 Reference Manual - 253080888-A
Sagem Communications document. Reproduction and disclosure prohibited Page A-5
A.4 "Diagnostics" tool
To access this tool:
¾ open your browser and then, in the address bar, enter:
• the following URL : http://myrouter,
• or the following address : http://192.168.1.1.
a "Login" window appears; enter the login and password. Default:
¾ admin in the "User name" field,
¾ admin in the "Password" field.
You have access to the HTTP configurator of your router.

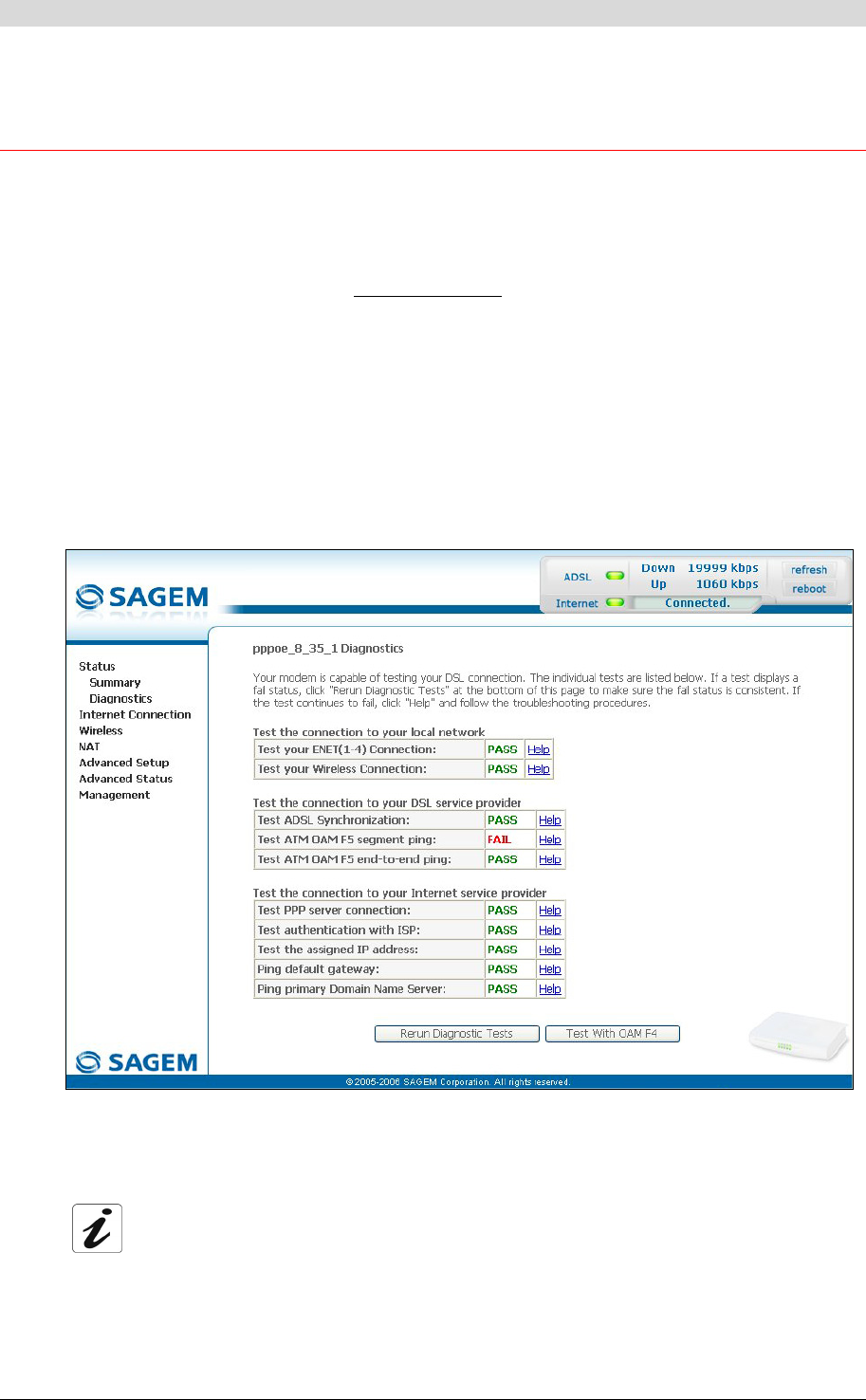

¾ select the heading "Diagnostics" in the suitable list to the left of each window; the following
screen appears:
The results of the tests made by the "DSL router" configurator on your modem/router are
displayed in the "Diagnostics" window. These tests concern the connections to the LAN, to your
DSL Service Provider and to your Internet Service Provider (ISP).
A hypertext link (help) enables the user to access context-related help. This help
gives an explanation concerning the state of the connection (PASS in green,
DOWN in orange and FAIL in red) and supplies the appropriate troubleshooting
procedures.
