Modem Tx

DTE Tx

COMMAND

ATH

COMMAND

Suspended data mode

Command mode

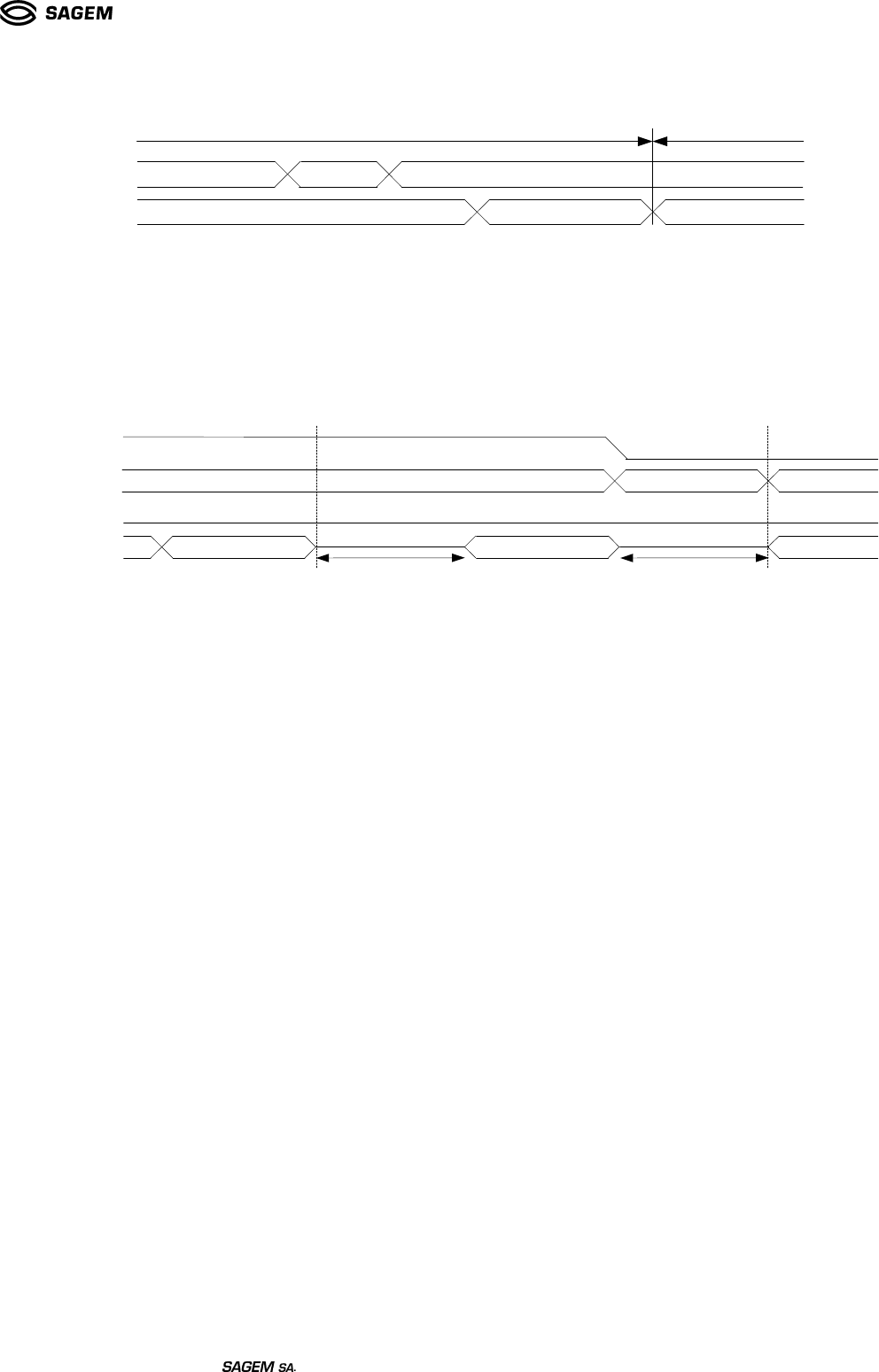

1.2.8. Timeout case

If modem didn’t receive the DTE_ESCAPE_STR after a timeout (2s), it send again his

MOD_ESCAPE_STR and wait for DTE_ESCAPE_STR as long as the MOD_ESCAPE*_CMD signal

is active. After 3 retry, module closes the MUX mechanism.

Modem Tx

DTE_ESCAPE_CMD

DTE Tx

MOD_ESCAPE_CMD

MOD_ESCAPE_STR

DATA

COMMAND

DATA

DTE_ESCAPE_STR

COMMAND

Time out

MOD_ESCAPE_STR

Wait for

DTE_ESCAPE_STR

Remarks:

If MOD_ESCAPE_CMD returns in inactive mode and the escape string hasn’t been received by the

modem, we have to resume the data connection.

---
