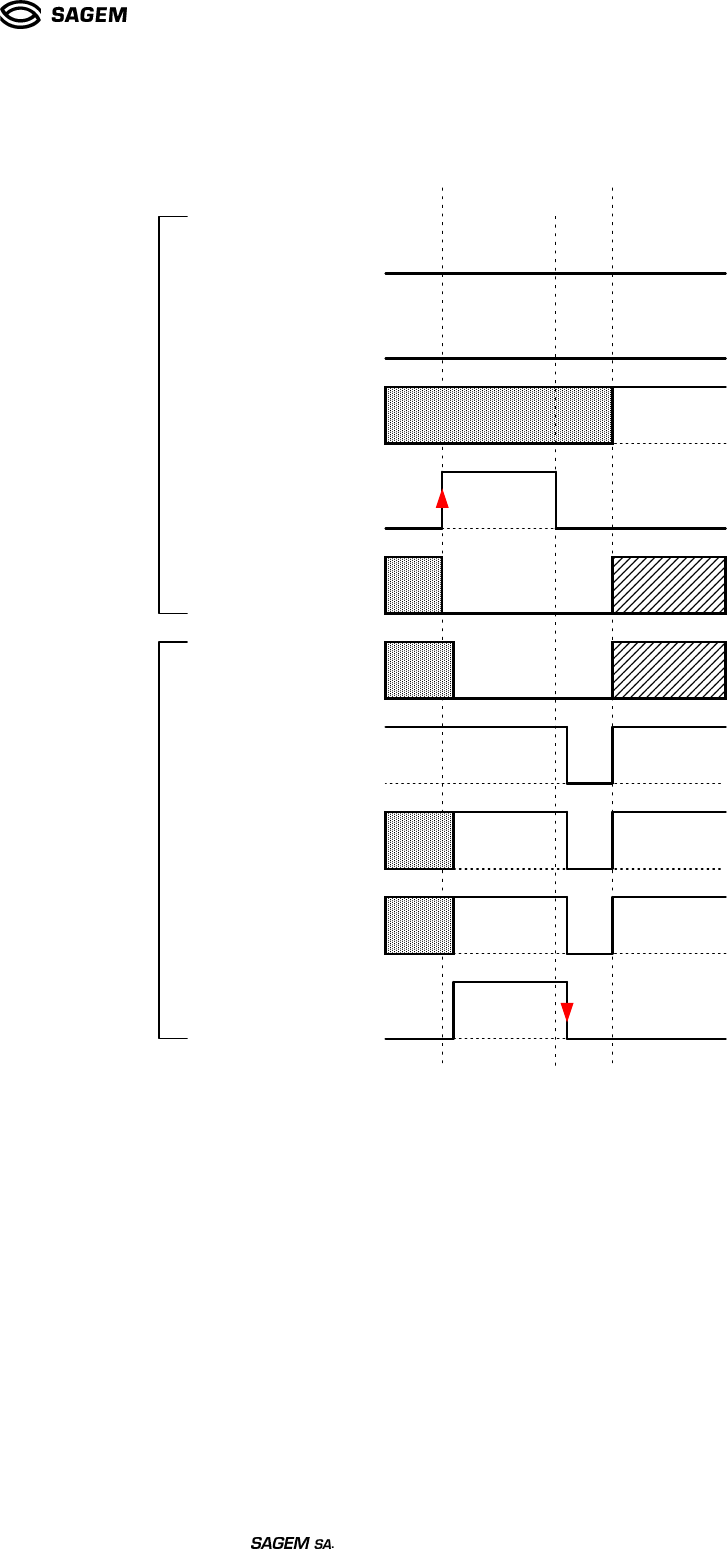

1.3.3.8.2. Initiated by the DTE.
MOD_ON_CMD
MOD_OFF_CMD
DTE_UART_STATE
MOD_RESET_CMD
ON
RESET
MOD_UART_STATE
MOD_ON_STATE
MOD_RESET_STATE
RX
TX
D
C
E
o
u
t
p
u
t
s
D
C
E
i
n
p
u
t
s
MOD_FLOW_STATE
1.3.3.9. Timeout.
If a command has no effect on the other equipment, it must be requested again after a one second
timeout. The maximum number of requests is 5 and then a reset procedure of the DCE must be
initiated by the DTE.
