Installation Instruction

Ref : SCT TMO MOD SPEC 662
Rev.: B
Ref. sec. :
Date:
18/11/2004
Document
¢
. All rights of reproduction and disclosure reserved.
MO2XX module – Confidential under NDA
Page 58/67
This character is
not mandatory
and will be lost
MOD_ON_CMD
MOD_OFF_CMD
DTE_UART_STATE
MOD_RESET_CMD
RX
TX
MOD_UART_STATE
MOD_ON_STATE
MOD_FLOW_STATE
D
C
E
i
n
p
u
t
s
D
C
E
o
u
t
p
u
t
s
MOD_RESET_STATE

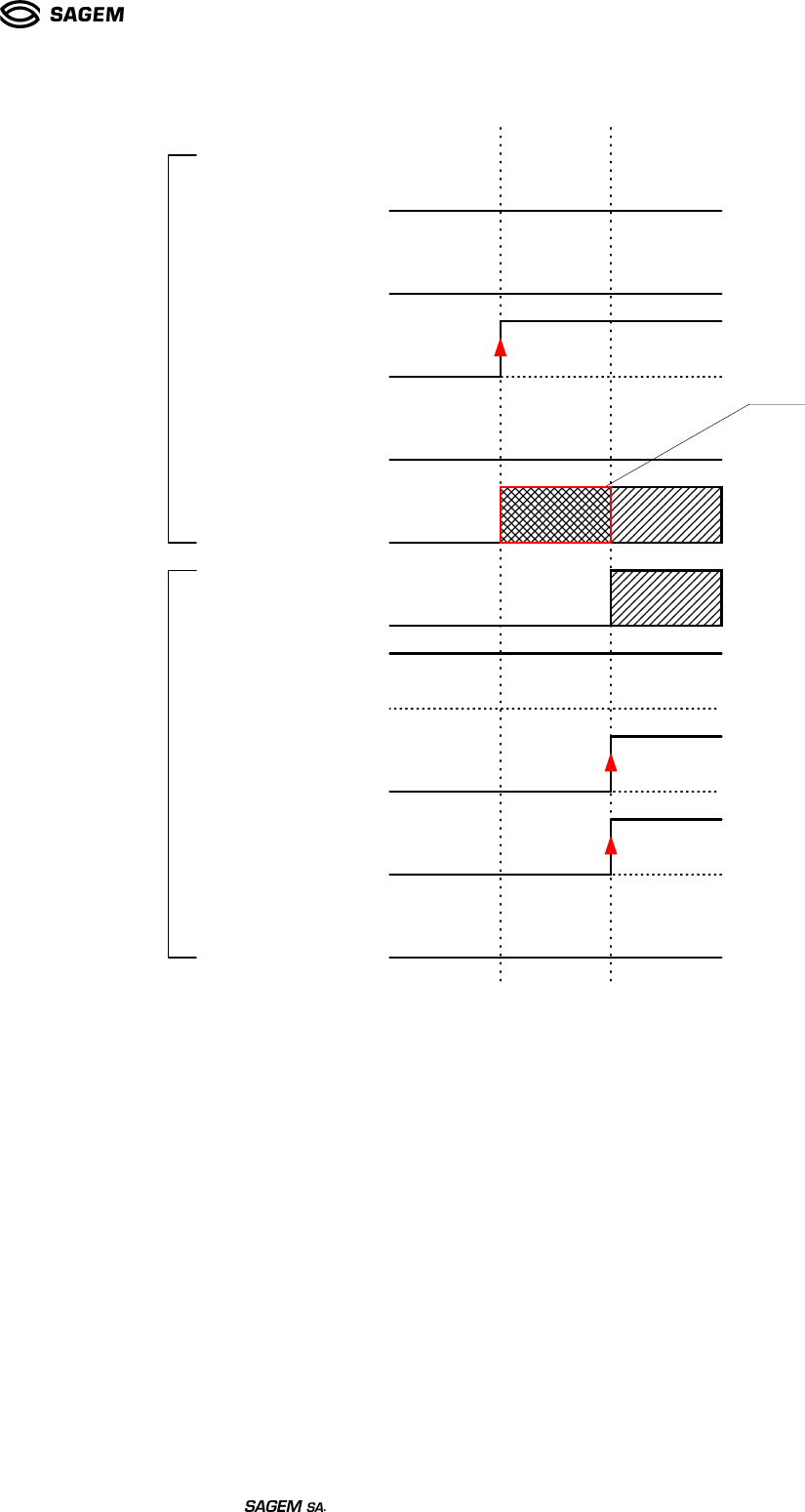

1.3.3.6. Transition from ON Sleep to OFF.
This transition is only possible by a command from the DTE (the MO2XX never switches off by
itself).
