8.2.1.2. Mother board connector

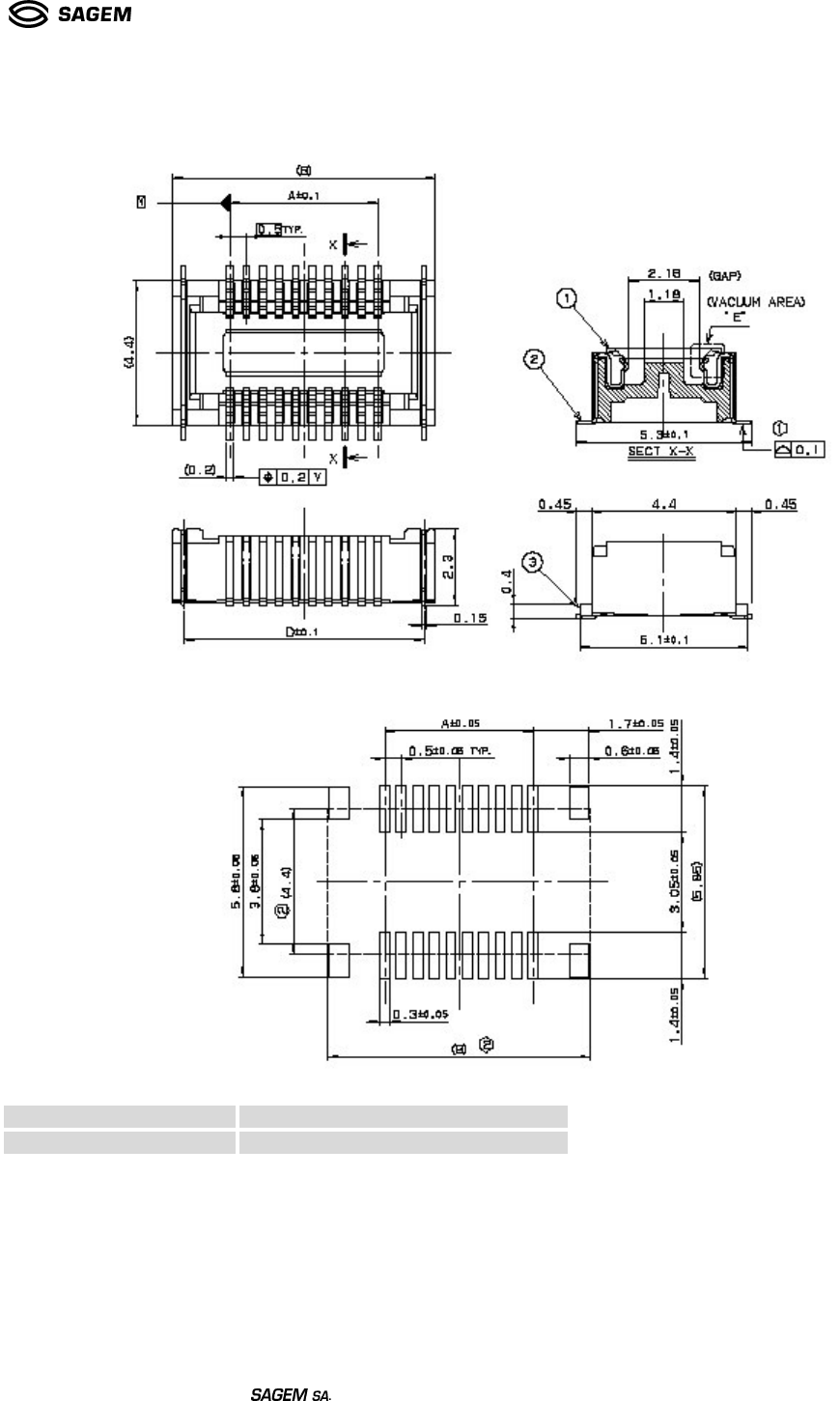

Recommended PC Board Mounting pattern:
Dimensions and references:
Pin Number References
120 AVX 20 5604 120 222 829
