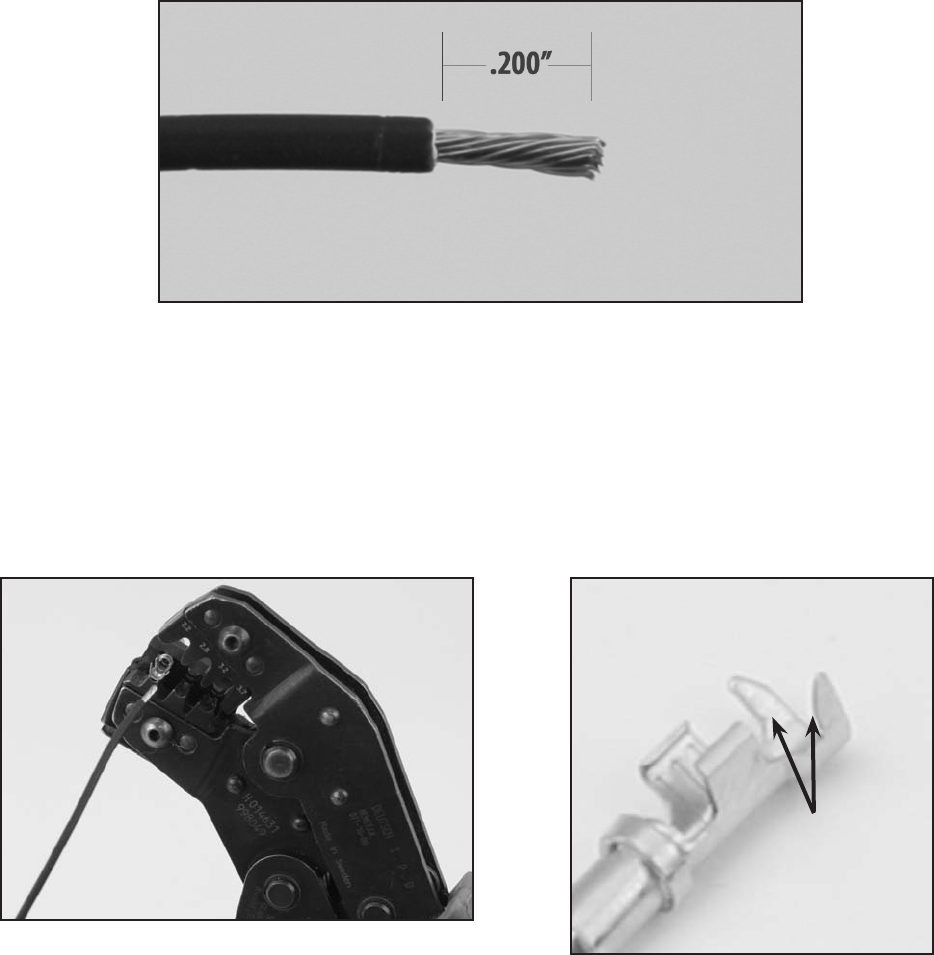

See Picture 7.

  



NOTE: Proper crimping of the terminals is necessary in order for the component to operate to its full potential. An improperly crimped terminal could

prevent the component from working. Read the instructions provided with the crimper or consult a professional on how to use the tool. Practice may also

help before crimping the nal product. If a terminal is crimped poorly, replace with one of the supplied extra terminals.

              See Picture 8.        

      See Picture 9.               

See Picture 10.

Picture 8

Picture 9

Picture 7










