D. INSTALLING CONNECTORS

NOTE: In order to crimp terminals onto the wire leads of the additional components you plan to use on your motorcycle, you will need a Deutsch® crimping

tool or equivalent. Since there are two types of terminals supplied with the S&S® EFI wire harness for the Deutsch connectors, two Deutsch crimpers will be

needed. The terminals, which are DTM and DT type, should not be interchanged. A DTM terminal, which is the smaller terminal of the two, should always

mate with another DTM terminal and likewise with DT terminals. Make sure before crimping each terminal that this rule always is applied. Use Deutsch

crimper part numbers DTT-16-00 or equivalent, for DT type terminals & DTT-20-00, or equivalent, for DTM type terminals. These tools are readily available

through your local parts distributor or you can consult a local shop for additional help.

 

 

 



 



 

The colors of the wires on the component do not in all cases match the colors on the S&S EFI wire harness. Consult the instructions of the

component and the wiring diagram for the S&S EFI wire harness to determine proper pin location of the component. It is also important

to note that some wiring from the additional components may be too small to create an eective seal in the connector. In these cases, use

heat shrink tubing on those wires to increase its outside diameter and provide better sealing.

Failure to correctly match the component wires with the correct wires on the S&S EFI wire harness may result in permanent damage to the

component or the S&S EFI wire harness when power is supplied to the assembly. Please take special care when identifying wire colors and

where they should go. If in any doubt, consult a professional S&S dealer. Improper installation could result in injury or death.

 





 

NOTE: Take special care not to damage the seal as this helps prevent moisture from entering the connector which can disrupt the electrical connection.

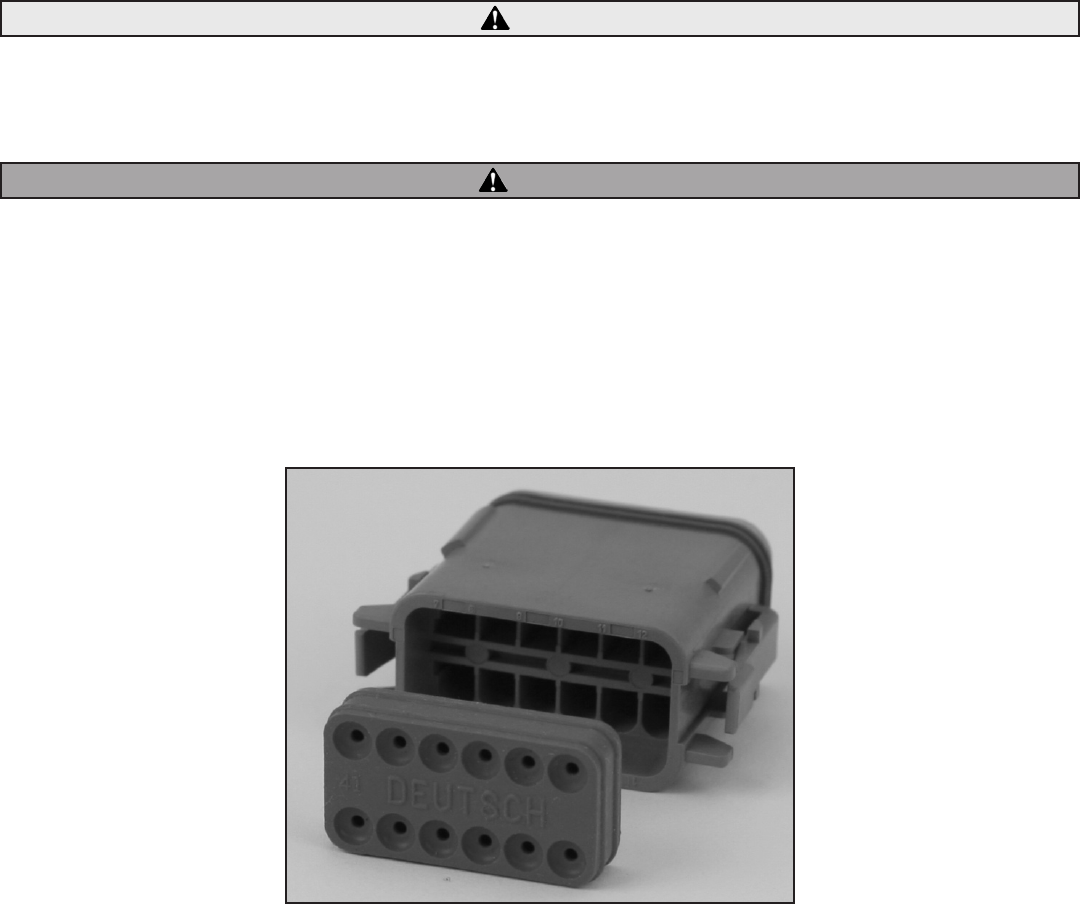

See Picture 6.

 



Picture 6
