Instruction Sheet 461-512LD

TripSaver

II Cutout-Mounted Recloser

TripSaver

II Gateway Controller:

User Guide

Table of Contents

Section Page Section Page

Introduction

Qualified Persons ........................... 2

Read this Instruction Sheet ................... 2

Retain this Instruction Sheet. . . . . . . . . . . . . . . . . . . 2

Proper Application .......................... 2

Warranty .................................. 2

Warranty Qualifications ...................... 3

Safety Information

Understanding Safety-Alert Messages ........... 3

Following Safety Instructions .................. 3

Replacement Instructions and Labels ........... 3

Hardware

Contents of TripSaver II Gateway Controller ...... 4

Dimensional Drawings ....................... 5

Gateway Controller Specifications .............. 6

Antenna Specifications ....................... 7

Connecting to the Gateway Controller ........... 7

Software

Logging in to a TripSaver II Gateway Controller .... 8

Regulatory Information ......................10

Summary of content (11 pages)

PAGE 1
TripSaver® II Cutout-Mounted Recloser TripSaver® II Gateway Controller: User Guide Table of Contents Section Page Introduction Qualified Persons. . . . . . . . . . . . . . . . . . . . . . . . . . . . Read this Instruction Sheet . . . . . . . . . . . . . . . . . . . . Retain this Instruction Sheet. . . . . . . . . . . . . . . . . . . Proper Application . . . . . . . . . . . . . . . . . . . . . . . . . . . Warranty. . . . . . .
PAGE 2
Introduction Qualified Persons WARNING Only qualified persons who are knowledgeable in the installation, operation, and maintenance of overhead and underground electric distribution equipment, along with all associated hazards, may install, operate, and maintain the equipment covered by this publication.
PAGE 3
Introduction Warranty Qualifications Warranty of the TripSaver® II Gateway Controller is contingent on the installation, configuration, and use of the software in accordance with S&C’s applicable instruction sheets. This warranty does not apply to major components not of S&C manufacture, such as communication devices, and antennas. However, S&C will assign to the immediate purchaser or end user all manufacturers’ warranties that apply to such major components.
PAGE 4

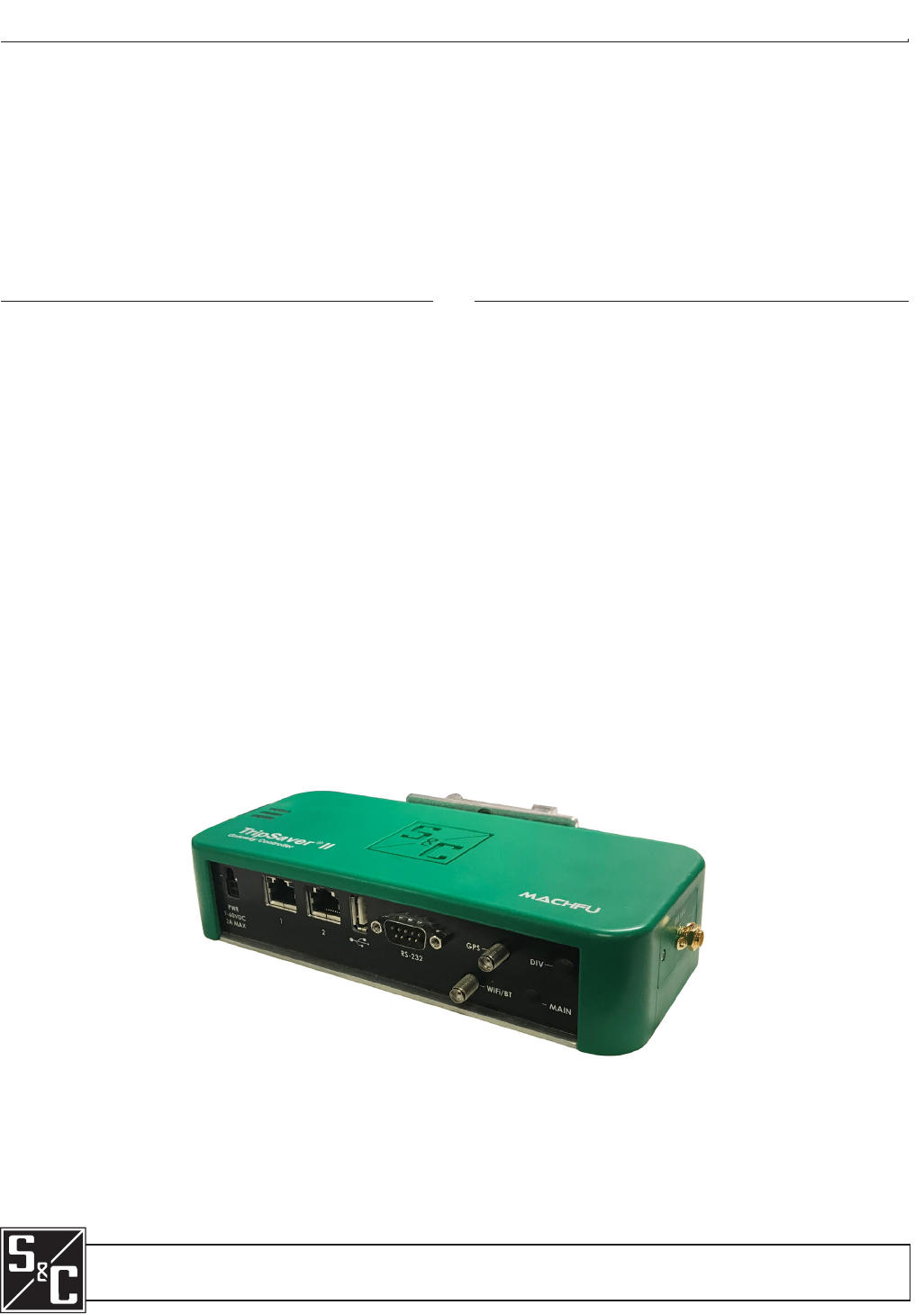

Hardware Contents of TripSaver II Gateway Controller Figure 1. The ac power cord. GPS Radio (802.15.4) 9-V Power Ethernet 1 Ethernet 2 USB RS-232 Wi-Fi/BT Figure 2. The TripSaver II Gateway Controller.
PAGE 5
Hardware Dimensional Drawings Dimensions in inches (mm) 1.661 (42) 3.386 (86) 6-32 Mounting Hole (x4) .470 (12) .499 (13) 3.345 (85) Figure 3.
PAGE 6
Hardware Gateway Controller Specifications Wi-Fi IEEE 802.11 b/g/n (2.4 GHz) WPA2-PSK Security ZigBee IEEE 802.15.4 (2.4 GHz) Bluetooth Bluetooth 4.0 (+Bluetooth low energy) (Max: 12.5 dBm) GPS GPS/GNSS 1 PPS time service for stable and traceable time reference Time management NTP IEEE 1588 PTP Ethernet Two 10/100 base-T RJ45 USB USB 2.
PAGE 7
Hardware Antenna Specifications Connecting to the Gateway Controller The gateway controller is professionally installed equipment. The radio frequency (RF) output power does not exceed the maximum limit allowed in the country of operation. Complete the following steps to connect to the gateway controller: CAUTION Unauthorized antenna, modifications, or attachments may damage the gateway controller, violate regulations, or cause minor injury.
PAGE 8
Software Logging in to a TripSaver II Gateway Controller Complete the following steps to log in to the controller: STEP 1. The communication gateway software is stored onboard the gateway controller and is accessed using a Web-browser interface. The default configuration of the gateway controller’s IP gateway is 192.168.1.1 with DHCP set as “On.
PAGE 9
Software STEP 3. With the CAT5 cable attached to the gateway controller’s Ethernet Port 1, launch a Web browser on the PC. In the URL address line, type the gateway controller default IP address of 192.168.1.1 and press the key. (Browser versions supported include Google Chrome and Internet Explorer.) The Login screen will open with a username and password challenge.
PAGE 10
Regulatory Information FCC Statement Industry Canada Statement This equipment has been tested and found to comply with the limits of a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
PAGE 11
Regulatory Information Industry Canada Radiation Exposure Statement Australia/New Zealand (ACMA) This radio transmitter with model: Gateway Controller has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.
