Replacement Part List

48 V ELECTRIC ZERO TURN MOWER − MODEL NOS. RY48ZTR75, RY48ZTR100
25
40
40
20
KEY
PTO
BLADE
DRIVE
PTO
USB
LIGHTS
AA
BB
S
L
D
B
B
W
X
Q
Y
Y
K
G
O
P
N
E
J
I
DD
V
Z
CC
Z
C
A
T
U
DD
C
F
M
R
H

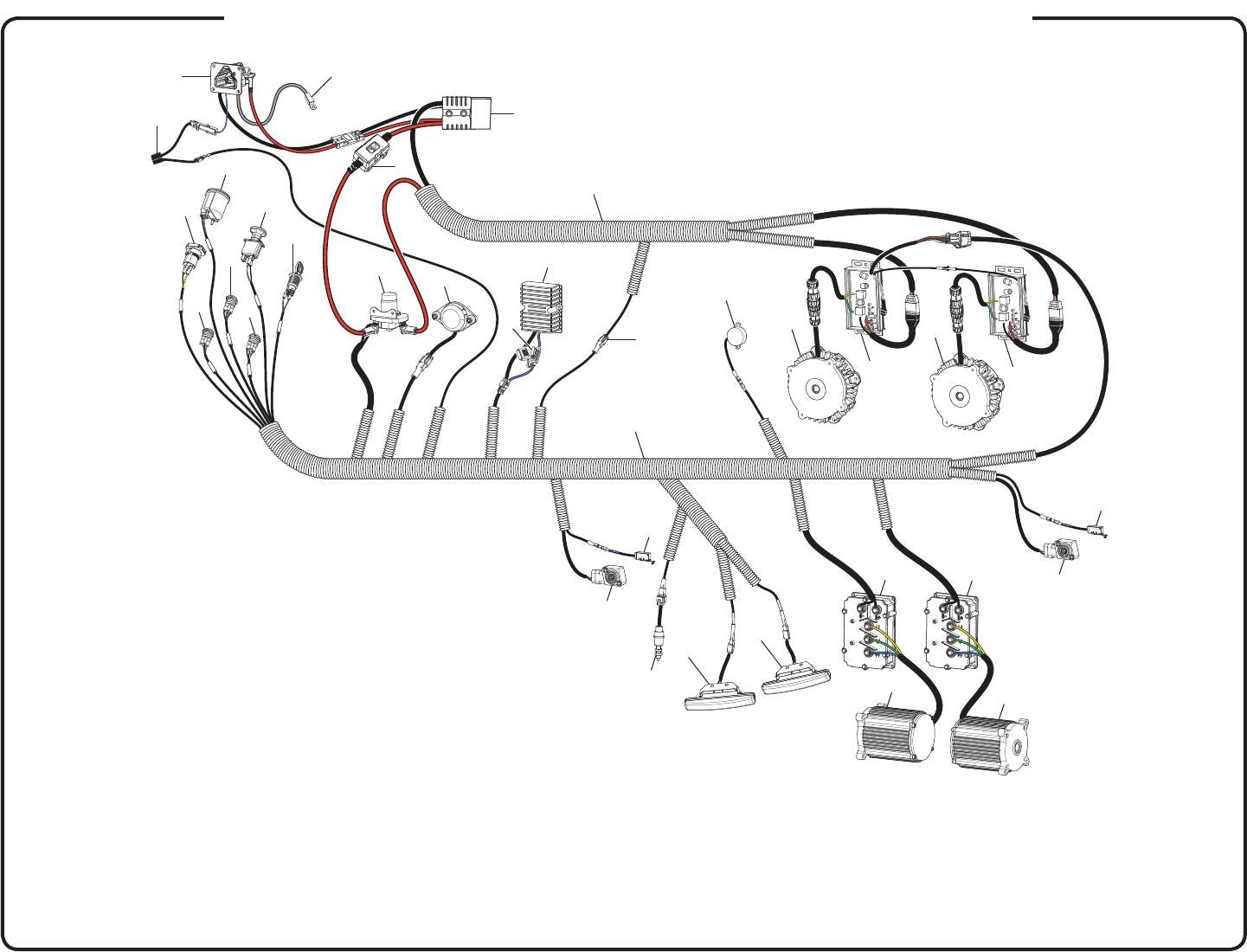

WIRING DIAGRAM
A Brake Switch
B Headlights
C Accelerator
D Ground
E Battery Gauge
F Switch w/Key
G Relay
H Battery Connector
I 12 Volt Power Converter
J Blade PTO
K Blade Speed
L USB
M Drive Speed
N Headlight Switch
O Seat Switch
P 2 Amp Fuse
Q Beeper
R 125 Amp Fuse
S Charger Lockout Circuit
T Master Deck Motor Controller
U Slave Deck Motor Controller
V Master Drive Motor Controller
W Main Wiring Harness
X Battery Output Cable
Y Deck Motor
Z Drive Motor
AA Charger Port
BB Temperature Sensor
CC Slave Drive Motor Controller
DD Neutral Switch
